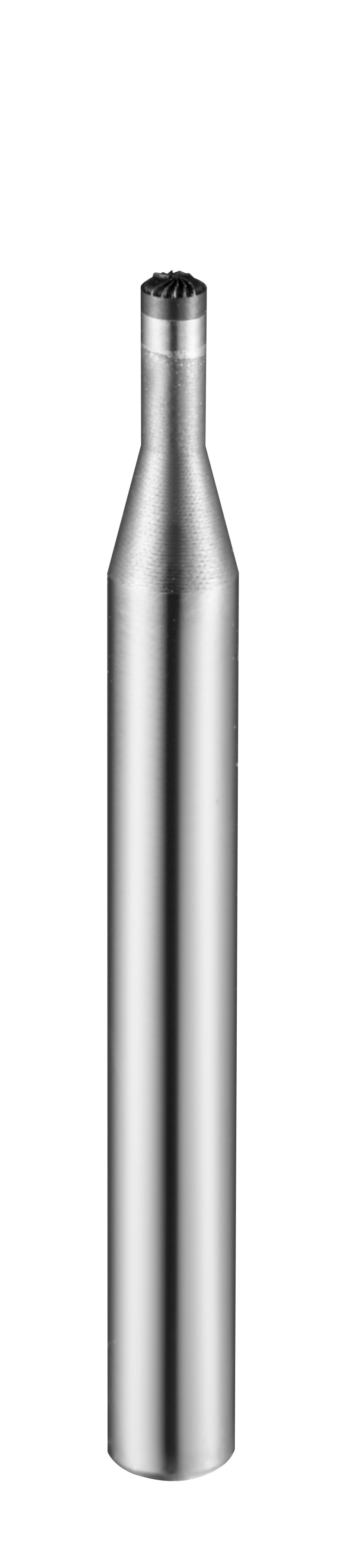

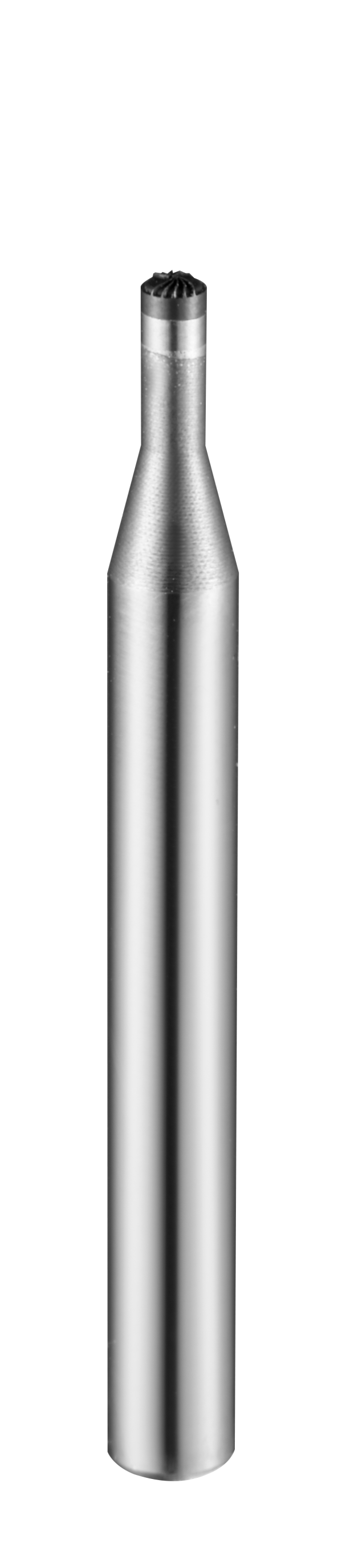

Solid PCD Micro-Edge Bull Nose End Mill
PCD Cutting Tools is hard alloy or steel cutter with PCD composite sheet as a weilding part. PCD tools are also widely used in high-speed machining of non-ferrous and non-metal materials in various sectors, for example, automotive, aerospace, electronics and wood.
| 0.5~20mm | 0.05~5mm | 0.8~2.5mm | 45/50/60 mm | 4/6/8/10/12/16/20 mm |
| Blade Diameter | R Angle | Effective Blade Length | Total Length | Tool Holder Diameter |
Features
Spec Sheet
Video
Features
- Super-High hardness and wear resistance
- High thermal conductivity, low thermal expansion coefficient, fast heat dissipation during cutting, low cutting temperature and small thermal deformation
- Small friction coefficient, reducing the roughness of the machined surface
- Widely used in high-speed machining of non-ferrous and non-metal materials in various sectors, for example, automotive, aerospace, electronics and wood
| Blade Diameter (D) | R Angle | Clearance Diameter (d2) | Effective Blade Length (h1) | Clearance Length (h2) | Total Length (L) | Tool Holder Diameter (d) |
| 0.5 | 0.05 | 0.45 | 0.8 | 3 | 45 | 4 |
| 1 | 0.05 | 0.95 | 1.2 | 6 | 45 | 4 |
| 1.5 | 0.1 | 1.45 | 1.2 | 6 | 45 | 4 |
| 2 | 0.1 | 1.95 | 1.2 | 6 | 45 | 4 |
| 2.5 | 0.15 | 2.45 | 2.5 | 6 | 45 | 4 |
| 3 | 0.15 | 2.95 | 2.5 | 6 | 45 | 4 |
| 4 | 0.2 | 3.95 | 2.5 | 6 | 45 | 4 |
| 6 | 0.5 | 5.95 | 2.5 | 10 | 50 | 6 |
| 8 | 0.5 | 7.95 | 2.5 | 10 | 50 | 8 |
| 10 | 1 | 9.95 | 2.5 | 10 | 50 | 10 |
| 12 | 1.5 | 11.95 | 2.5 | 10 | 50 | 12 |
| 16 | 2 | 15.95 | 2.5 | 10 | 60 | 16 |
| 20 | 5 | 19.95 | 2.5 | 10 | 60 | 20 |

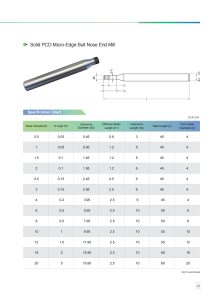

Spec Sheet
Click here to download >>> https://www.conprofecnc.com/wp-content/uploads/2024/03/2024.11.21-PCD-Cutting-Tools-VE3.3.pdf
