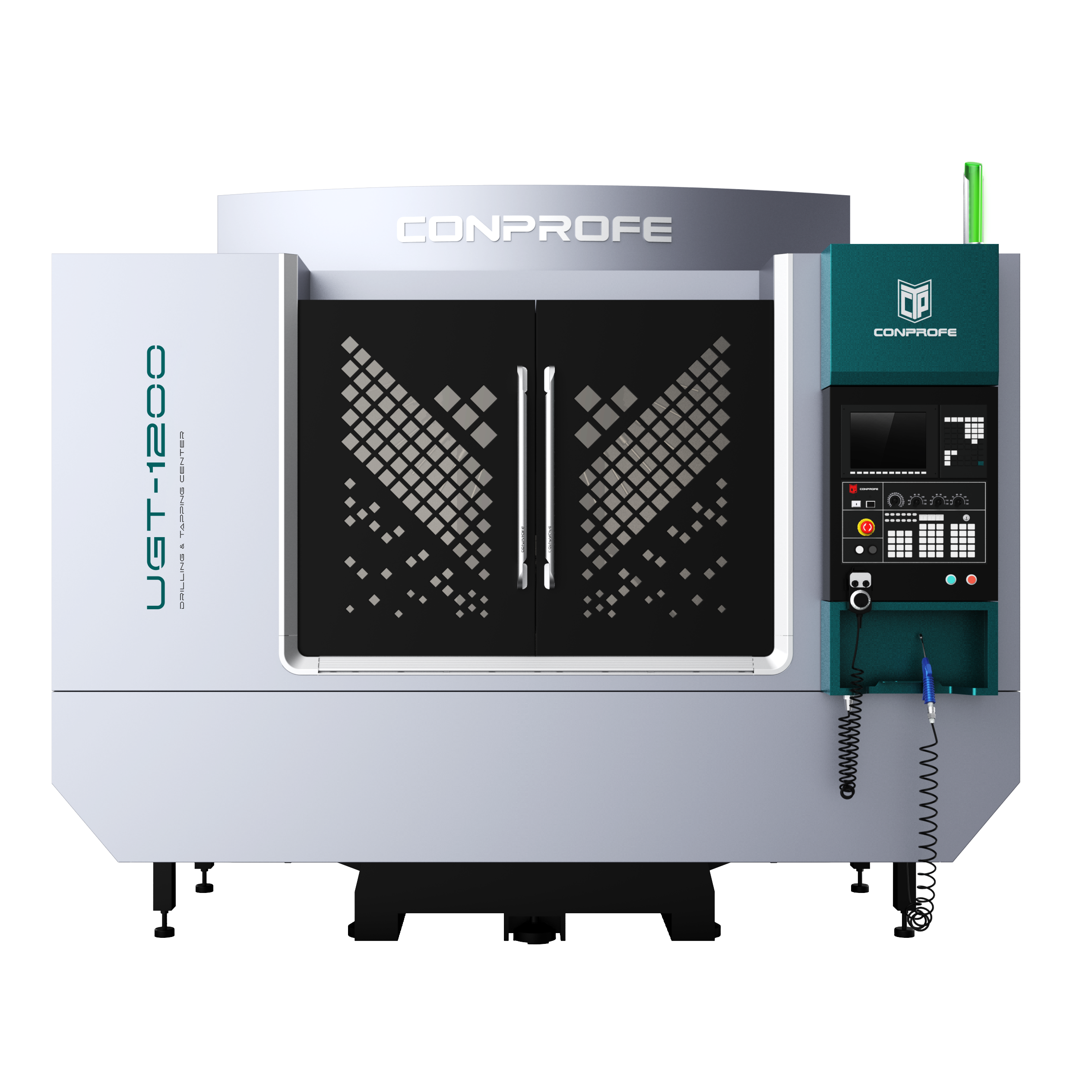

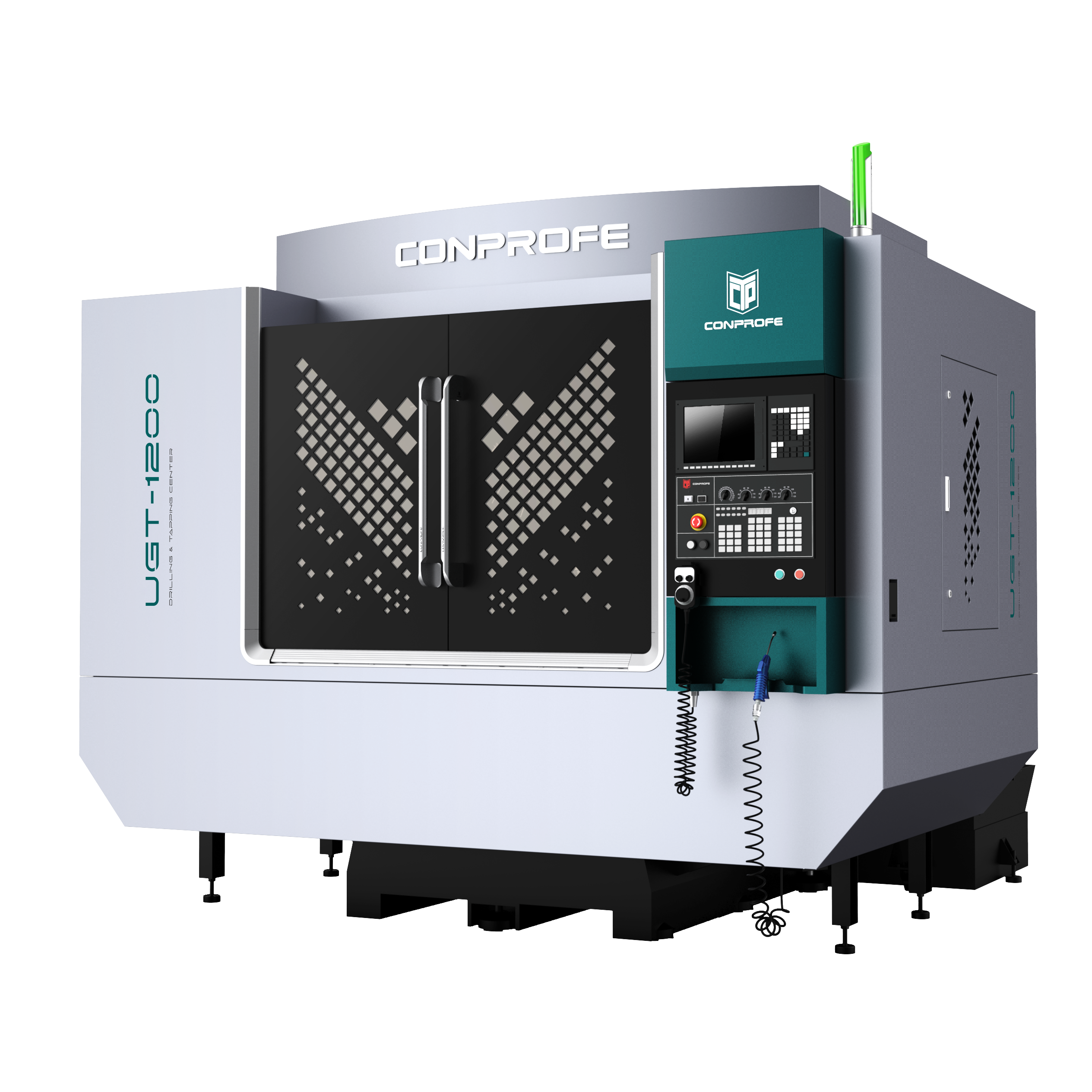

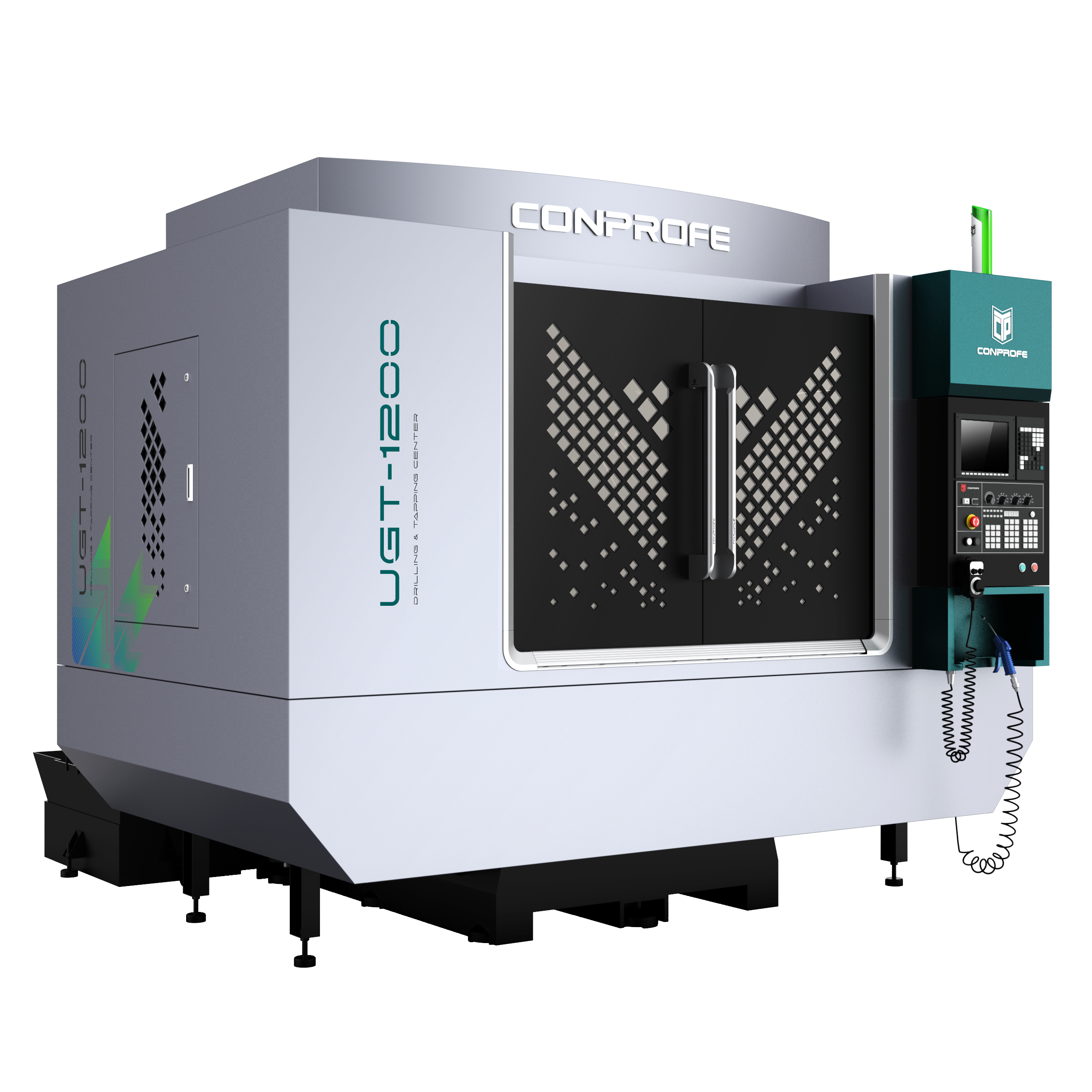

UGT-1200
Suitable for machining precision parts made of hard-brittle materials (e.g. ceramic, sapphire, glass, silicon carbite etc.), carbon-fiber composites, superalloy (e.g. titanium alloy) and other hard-to-cut materials
| BT30 | 3 | 30K | 21T |
| TAPER | AXIS | RPM | TOOL MAGAZINE |
Features
Spec Sheet
Video
Features
- Conprofe independently-developed Ultrasonic Machining System to solve issues in machining hard-to-cut materials
- Optional Supercritical CO₂ or MQL Cooling System to realize clean machining
- Three options for screw guides available to meet various machining requirements on hard-brittle materials and metal
- Coolant-through BBT-30 Ultrasonic Spindle with max speed of 30,000rpm available
- Various Tool Holding Capacity of tool magazine: 21T/26T/30T/36T/30T+14T
- Positioning accuracy of 5μm and repeatability of 3μm
- 4/5th Axis Rotary Table available

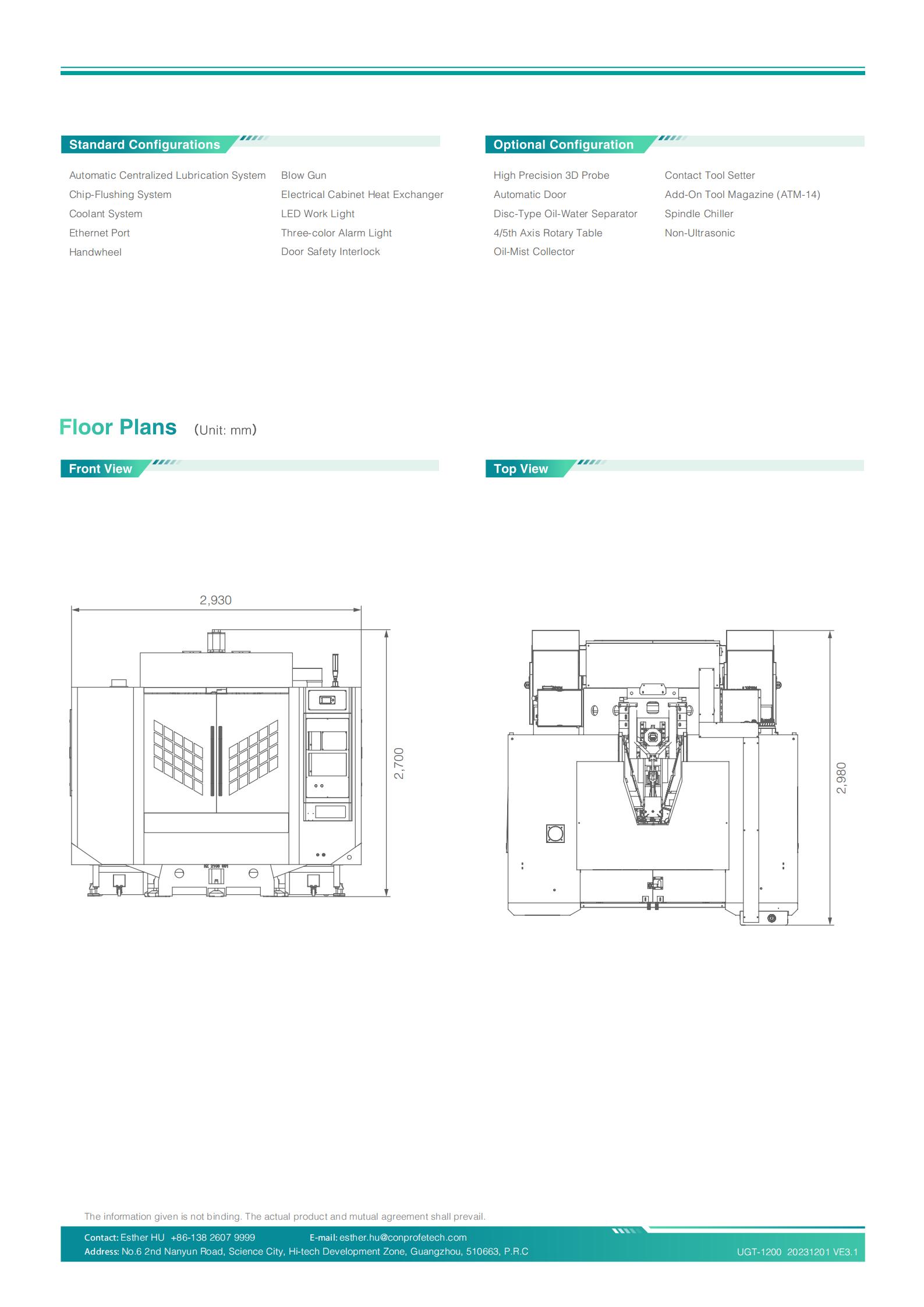

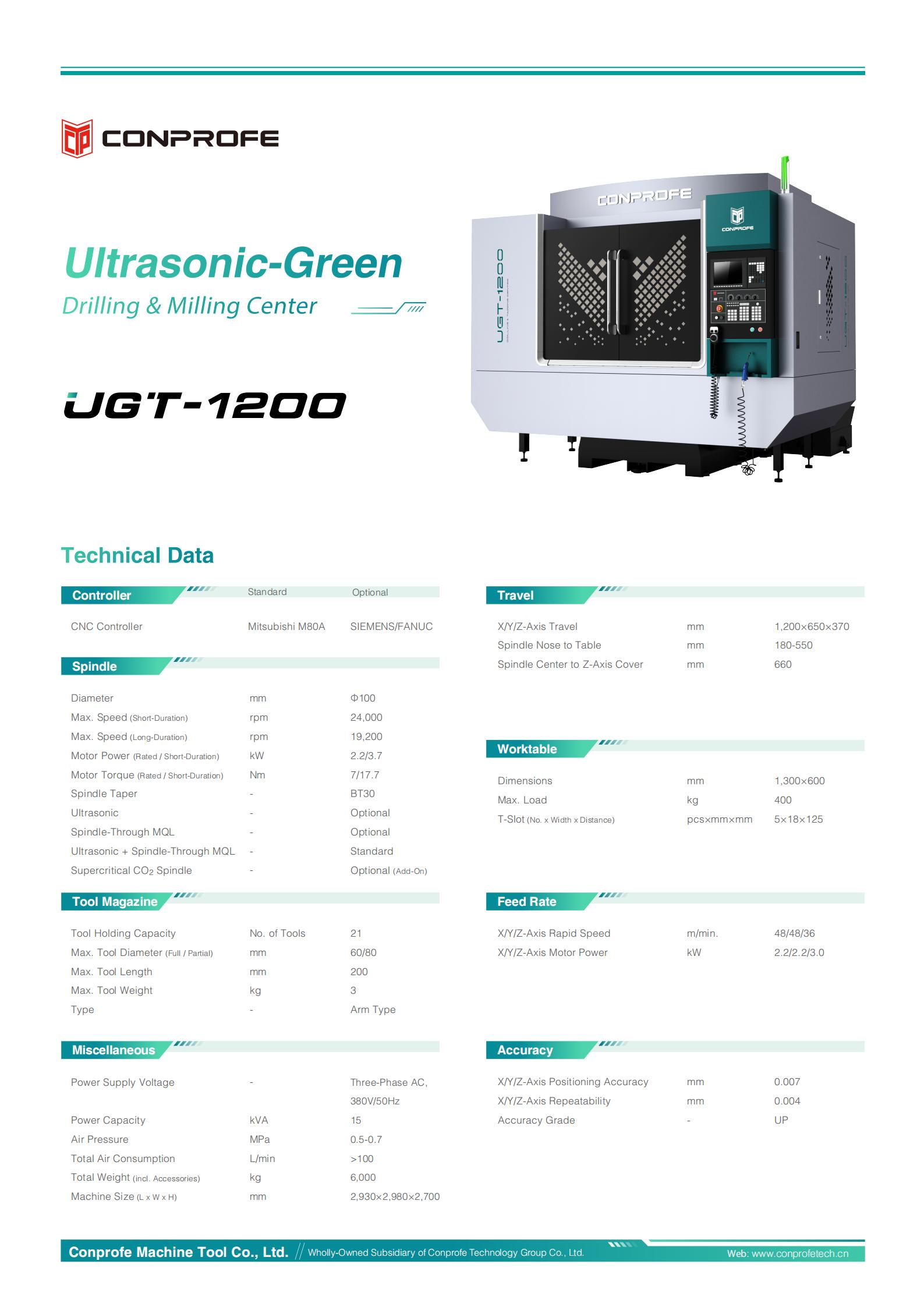

| Item | Unit | UGT-1200 |
| Travel | ||
| X/Y/Z-Axis Travel | mm | 1200x650x370 |
| Spindle Nose to Table | mm | 180-550 |
| Spindle Center to Z-Axis Cover | mm | 660 |
| Worktable | ||
| Dimensions | mm | 1300×600 |
| Max. Load | kg | 400 |
| T-Slot (No. x Width x Distance) | pcs x mm x mm | 5x18x125 |
| Spindle | ||
| Diameter | mm | Φ100 |
| Max. Speed (Short-Duration) | rmp | 24,000 |
| Max. Speed (Long-Duration) | rmp | 19,200 |
| Motor Power (Rated) | kW | 2.2/3.7 |
| Motor Torque (Rated) | Nm | 7/17.7 |
| Spindle Taper | – | BT30 |
| Ultrasonic | – | Optional |
| Minimum Quantity Lubrication (MQL) | – | Optional |
| Ultrasonic + MQL | – | Standard |
| Supercritical CO2 Spindle | – | Optional (Add-on) |
| Feed Rate | ||
| X/Y/Z-Axis Rapid Speed | m/min | 48/48/36 |
| X/Y/Z-Axis Motor Power | kW | 2.2/2.2/3.0 |
| Accuracy | ||
| X/Y/Z-Axis Positioning Accuracy | mm | 0.007 |
| X/Y/Z-Axis Repeatability | mm | 0.004 |
| Accuracy Grade | – | UP |
| Tool Magazine | ||
| Tool Holding Capacity | No. of Tools | 21 |
| Max. Tool Diameter (Full) | mm | 60/80 |
| Max. Tool Length | mm | 200 |
| Max. Tool Weight | kg | 3 |
| Type | – | Arm Type |
| Miscellaneous | ||
| Power Supply Voltage | – | Three-Phase AC, 380V/50Hz |
| Power Capacity | kVA | 15 |
| Air Pressure | MPa | 0.5-0.7 |
| Total Air Consumption | L/min | > 100 |
| Total Weight (incl. Accessories) | kg | 6000 |
| Machine Size (LxWxH) | mm | 2930 x 2980 x 2700 |
| Controller | ||
| CNC Controller | – | Mitsubishi M80A (Standard) SIEMENS/FANUC (Optional) |
