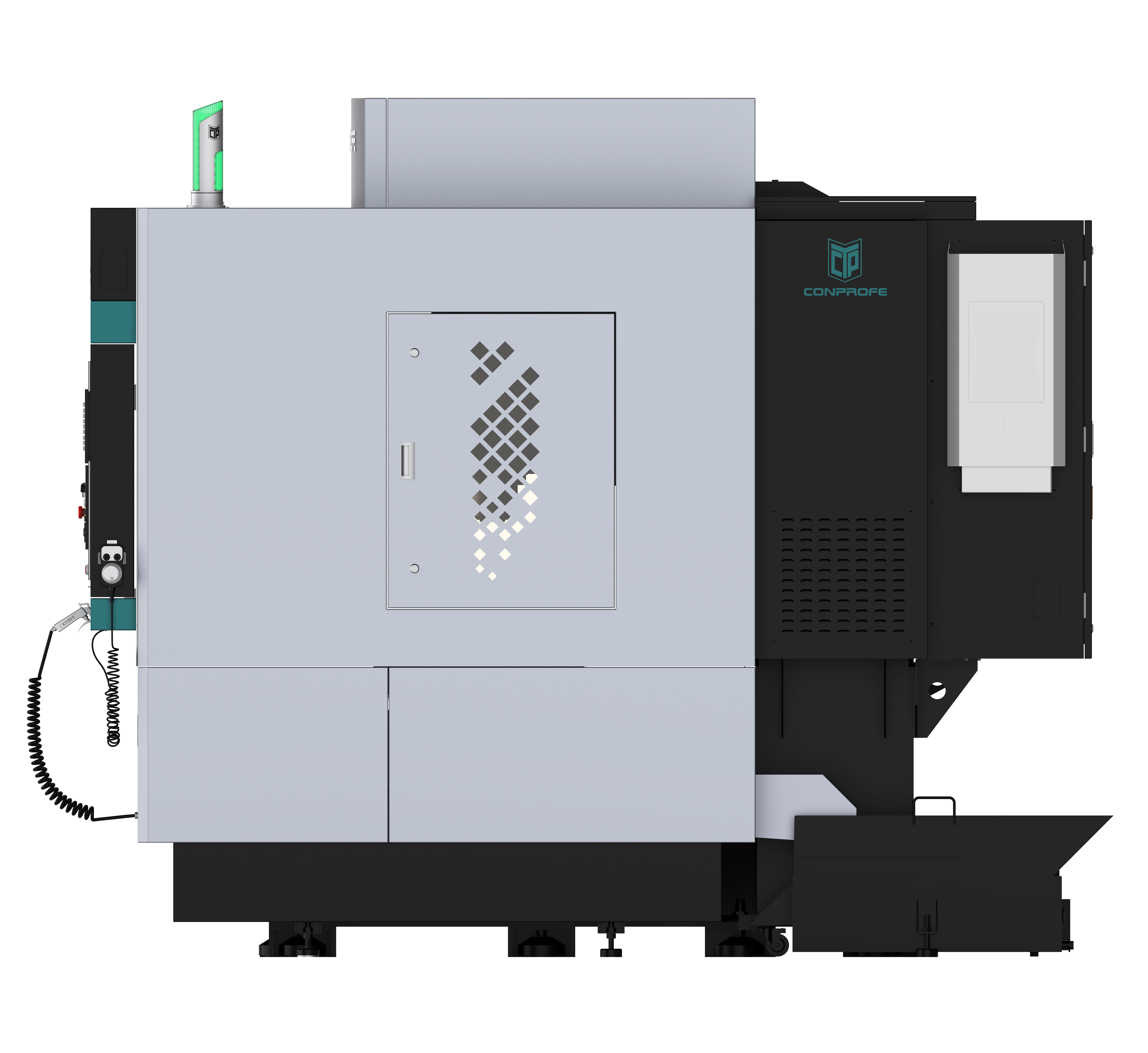

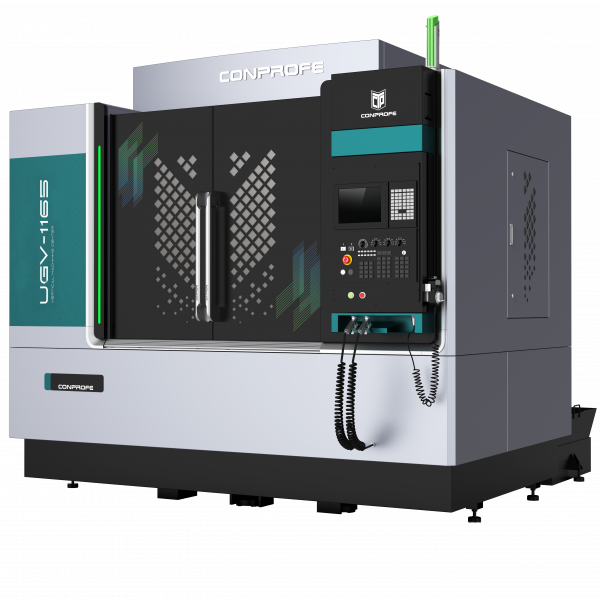

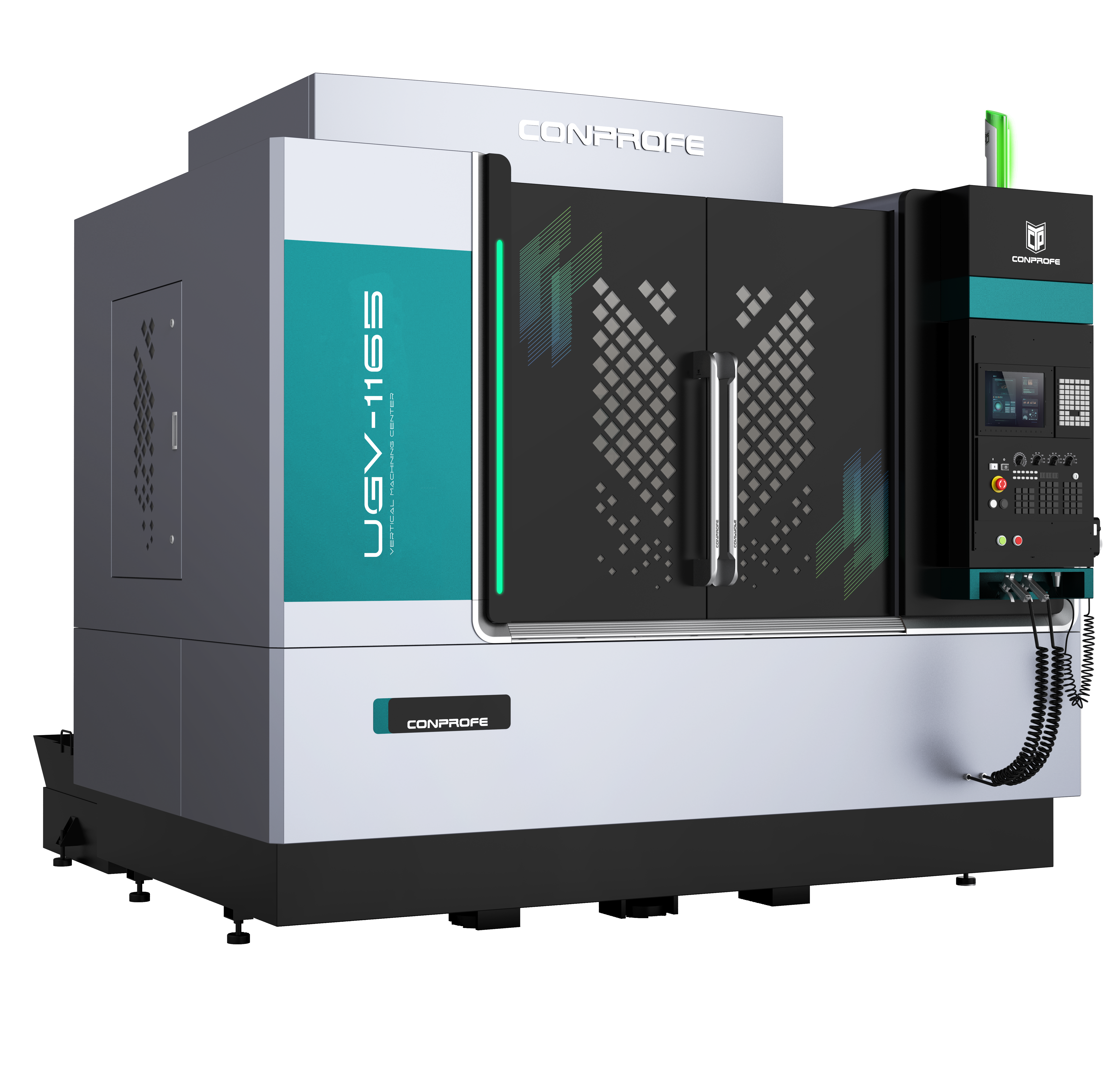

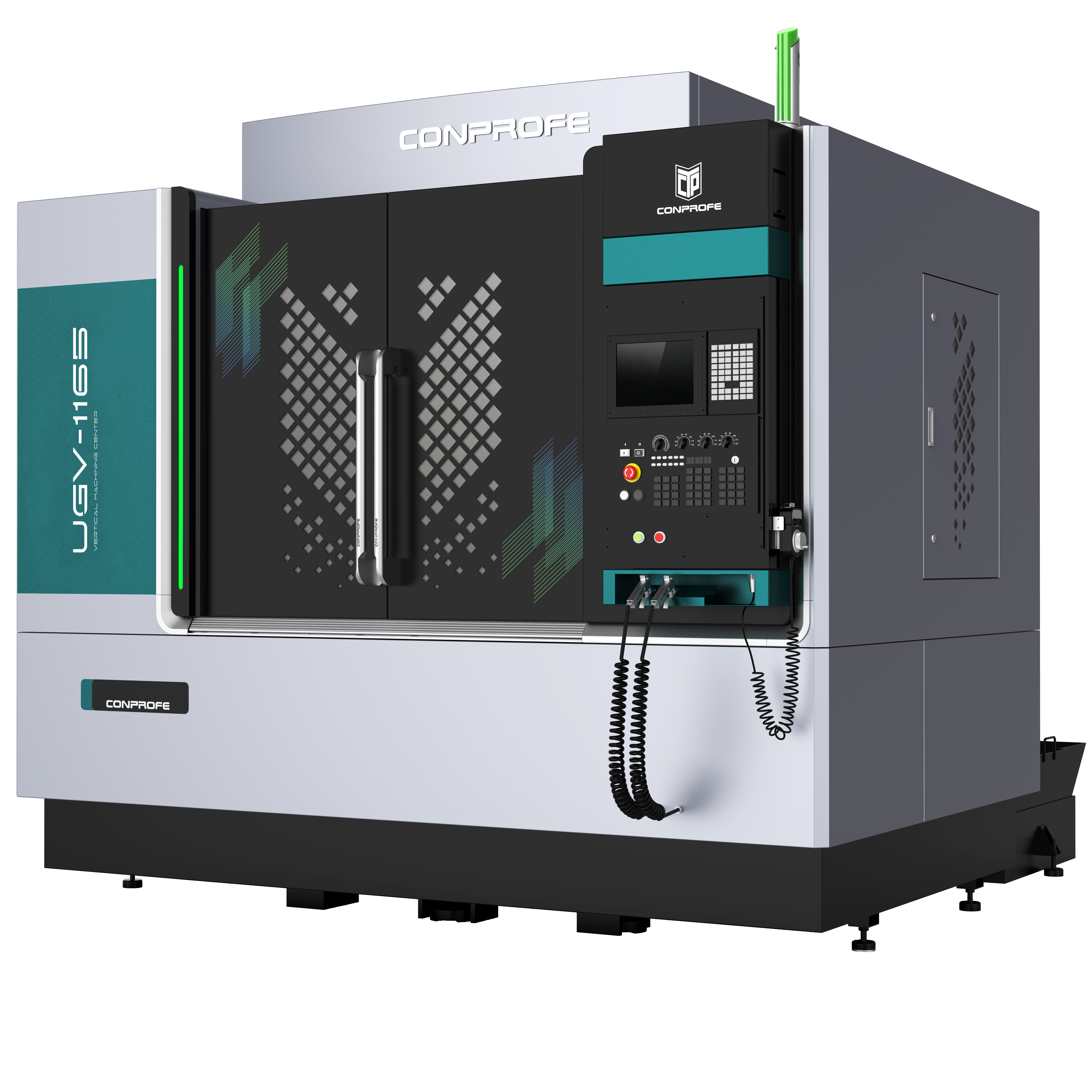

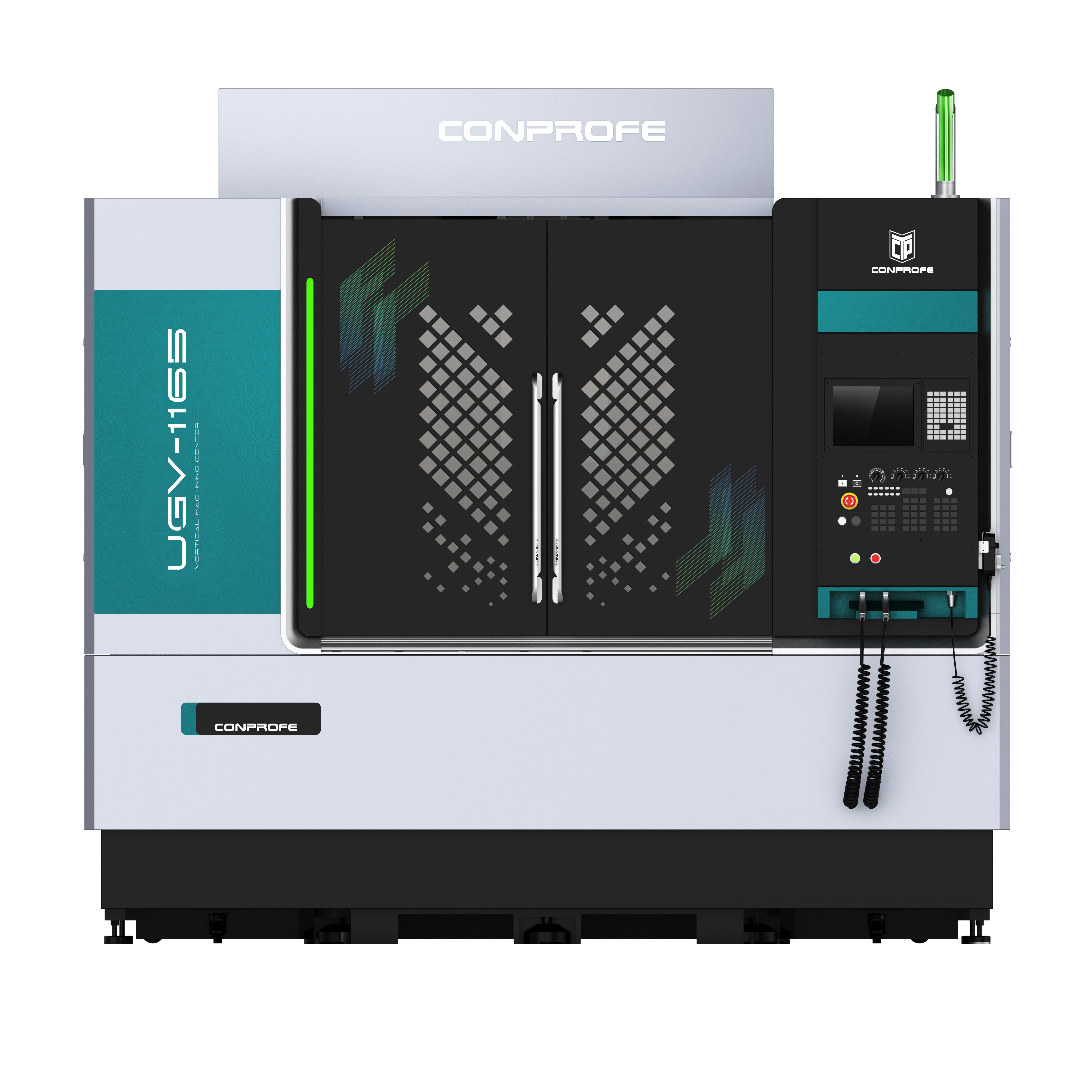

UGV-1165
Suitable for machining precision parts made of hard-brittle materials (e.g. ceramic, sapphire, glass, silicon carbite etc.), carbon-fiber composites, superalloy (e.g. titanium alloy) and other hard-to-cut materials
| BT40/HSK-A63 | 3 | 12K~18K | 0.008 mm | 0.005 mm |
| TAPER | AXIS | RPM | POSITIONING | REPEATABILITY |
Features
Spec Sheet
Video
Features
- Conprofe independently-developed intelligent Ultrasonic Machining System to readily solve issues in machining hard-to-cut materials
- Optional Supercritical CO₂ or MQL Cooling System to realize clean machining
- Two options for screw guides to meet requirements on machining hard-brittle materials and metal
- With high-precision linear encoders realizing fully-enclosed control
- Options of Fanuc, Mitsubishi, Siemens and HNC system available
- With an optional automatic fire suppression system
| Item | Unit | UGV-1165 | ||
| Travel | ||||
| X/Y/Z-Axis Travel | mm | 1100x650x600 | ||
| Spindle Nose to Table | mm | 140-740 | ||
| Spindle Center to Column Guide | mm | 710 | ||
| Worktable | ||||
| Dimensions | mm | 1200×600 | ||
| Max. Load | kg | 800 | ||
| T-Slot (No. x Width x Distance) | pcs x mm x mm | 5x18x100 | ||
| Spindle | ||||
| Diameter | mm | Φ150 (Optional) | Φ150 (Optional) | Φ150 (Optional) |
| Max. Speed (Short-Duration) | rmp | 12,000 (Direct-Driven) | 15,000 (Direct-Driven) | 18,000 (Electric Spindle) |
| Max. Speed (Long-Duration) | rmp | 9,600 (Direct-Driven) | 12,000 (Direct-Driven) | 14400 (Electric Spindle) |
| Motor Power (Rated / Short-Duration) | kW | 7.5/11 | 9/11 | Y:6/7.5 △: 11/13.75 |
| Motor Torque (Rated / Short-Duration) | Nm | 35.8/70 | 57.3/70 | Y: 32.5/42.9 △: 18.8/24.2 |
| Spindle Taper | – | BT40 | BT40 | HSK-A63 |
| Ultrasonic | – | Optional | Optional | Optional |
| Minimum Quantity Lubrication (MQL) | – | Optional | Optional | Optional |
| Ultrasonic + MQL | – | Optional | Optional | Optional |
| Feed Rate | ||||
| X/Y/Z-Axis Rapid Speed | m/min | 36/36/36 | ||
| X/Y/Z-Axis Max. Feed Speed | m/min | 10/10/10 | ||
| X/Y/Z-Axis Motor Power | kW | 2/2/3 | ||
| Accuracy | ||||
| X/Y/Z-Axis Positioning Accuracy | mm | 0.008 | ||
| X/Y/Z-Axis Repeatability | mm | 0.005 | ||
| Accuracy Grade | – | UP | ||
| Tool Magazine | ||||
| Tool Holding Capacity | No. of Tools | 24 (Standard) 30 (Optional) | ||
| Max. Tool Diameter (Full/Partial) | mm | Φ75/Φ150 | ||
| Max. Tool Length | mm | 250 | ||
| Max. Tool Weight | kg | 8 | ||
| Type | – | Disc Type | ||
| Miscellaneous | ||||
| Power Supply Voltage | – | Three-Phase AC, 380V/50Hz | ||
| Power Capacity | kVA | 20 | 22 | 23 |
| Air Pressure | MPa | 0.5-0.7 | ||
| Total Air Consumption | L/min | > 100 | ||
| Total Weight (incl. Accessories) | kg | 7200 | ||
| Machine Size (LxWxH) | mm | 2760 x 3000 x 3100 | ||
| Controller | ||||
| CNC Controller | – | Mitsubishi M80B (Standard) | SIEMENS 828D-280 (Optional) | FANUC Oi-MF (5) |

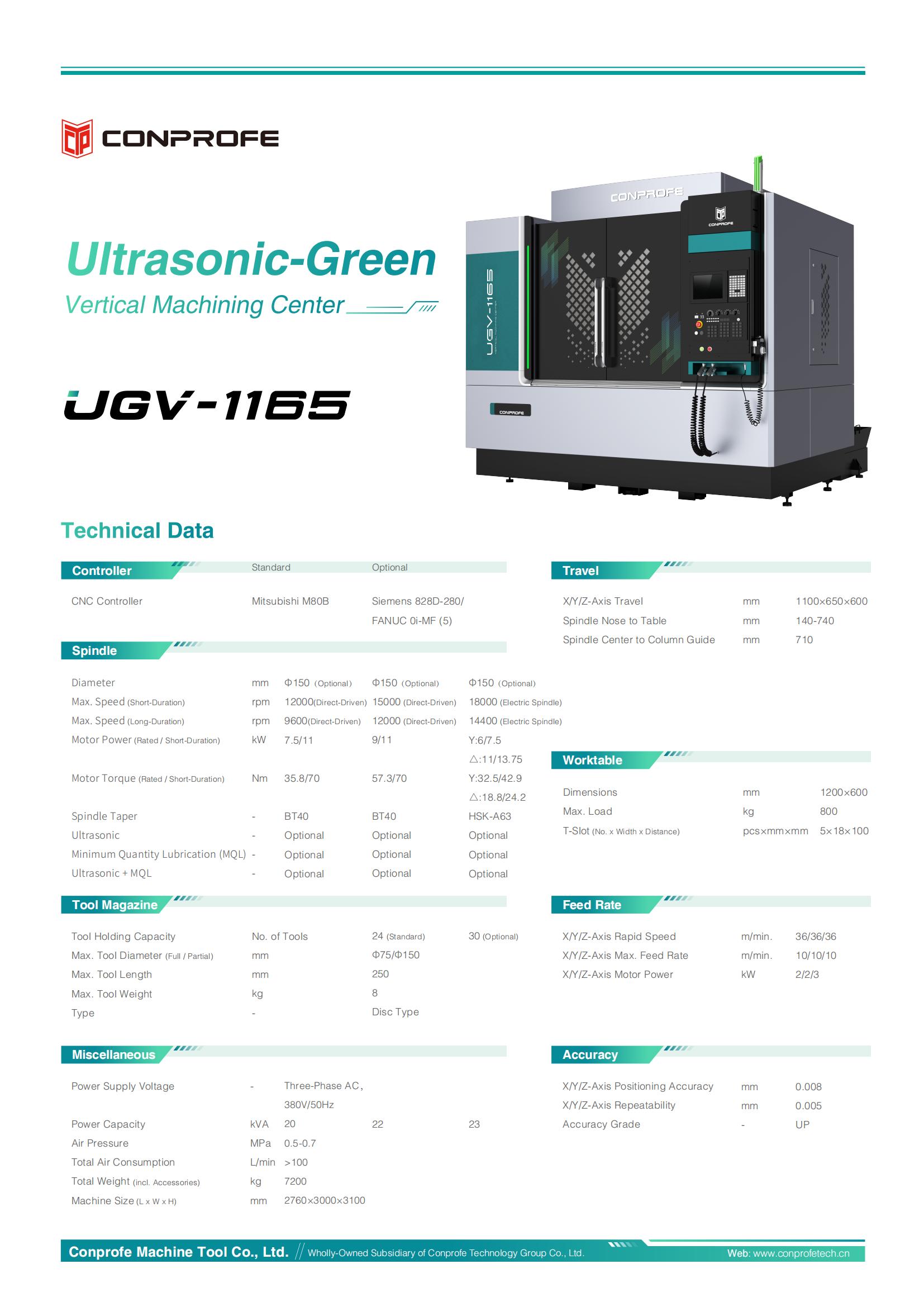

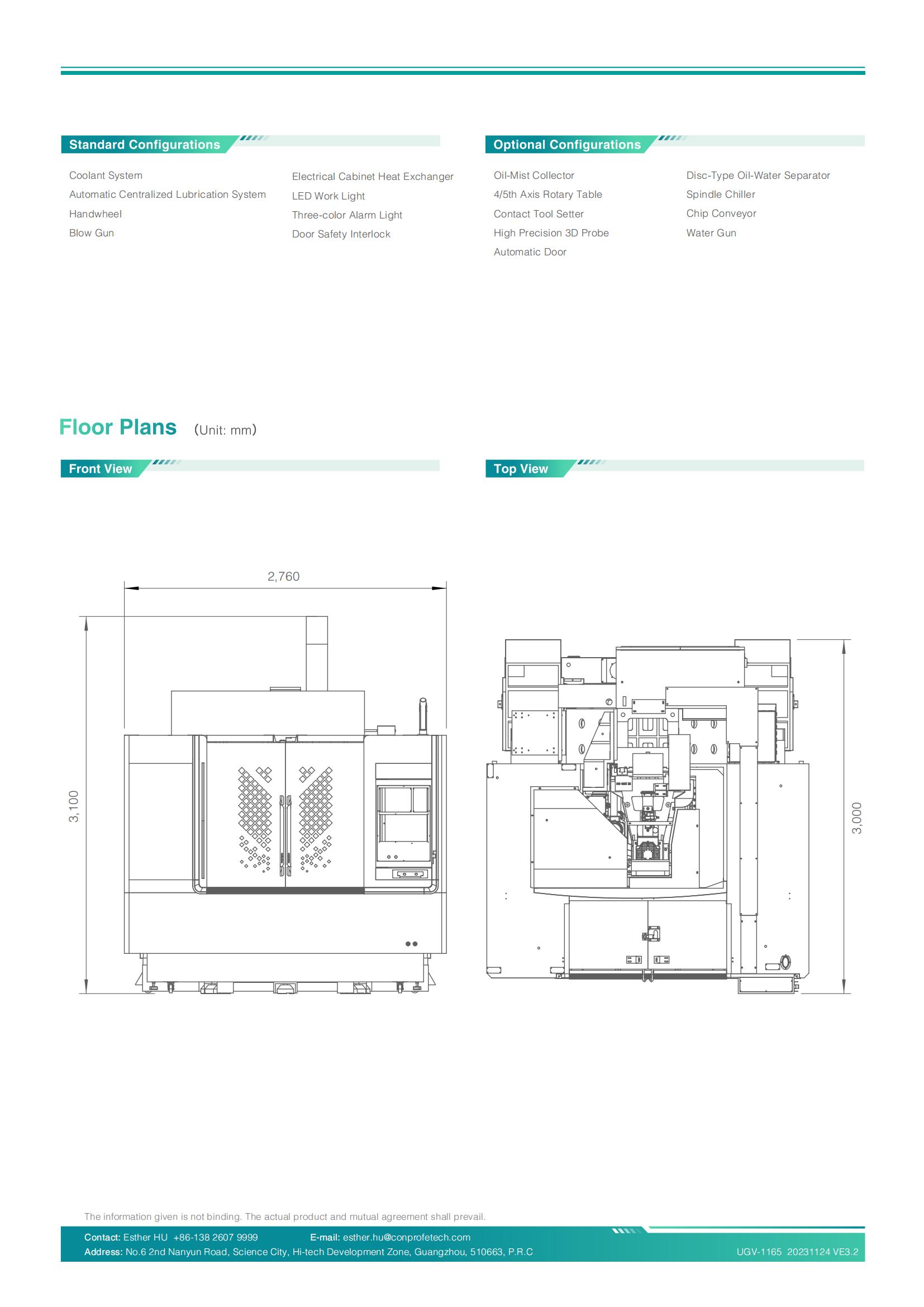

Spec Sheet
