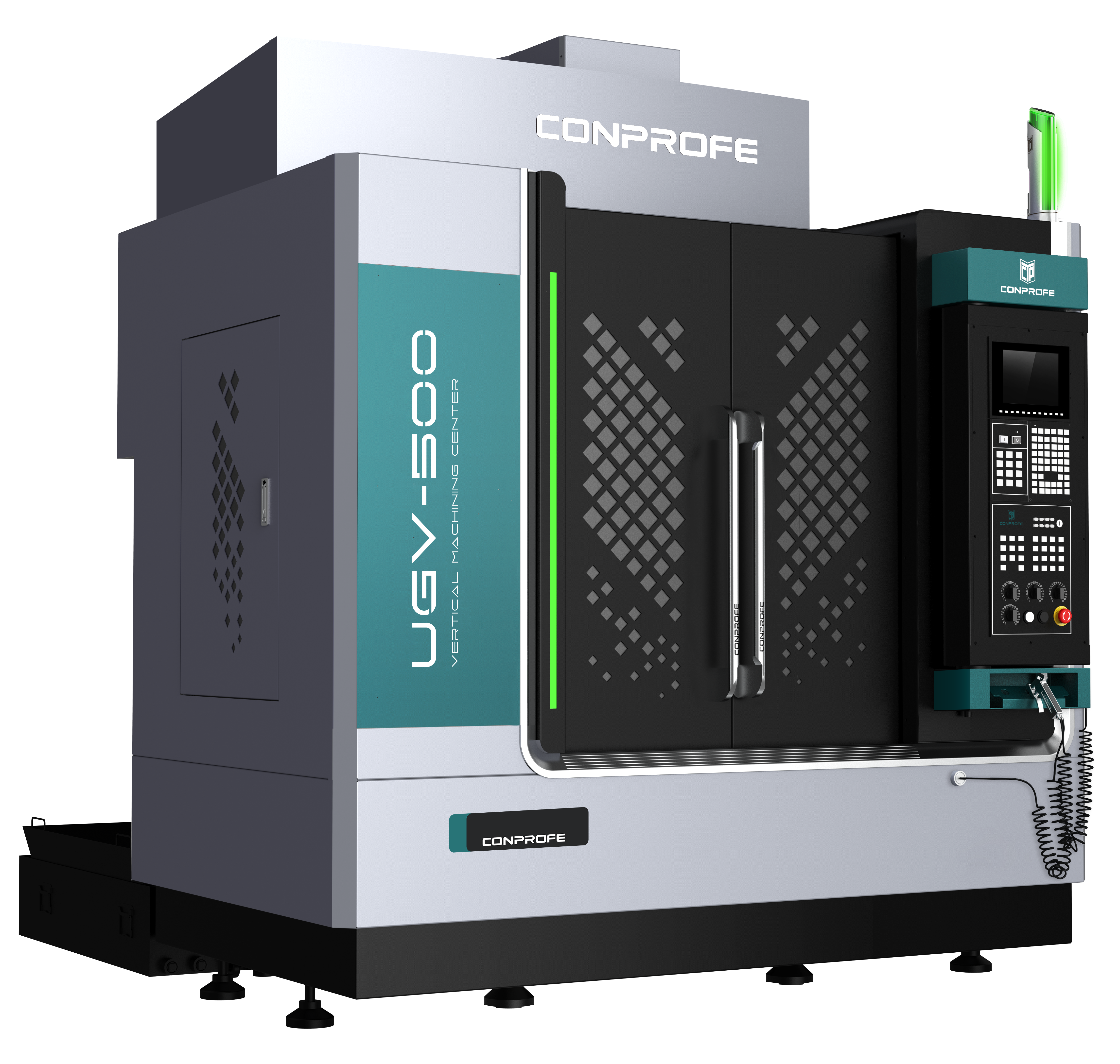

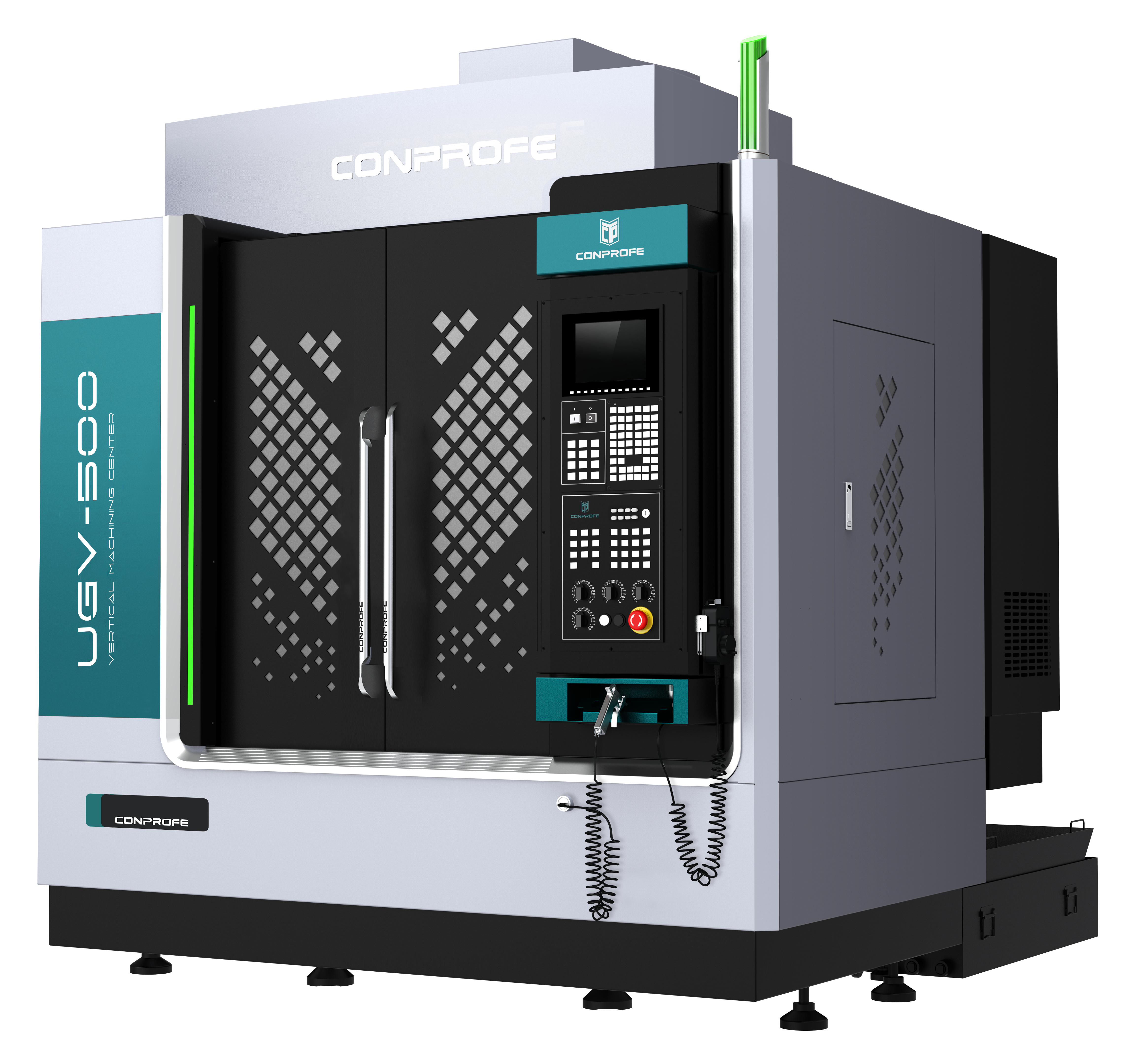

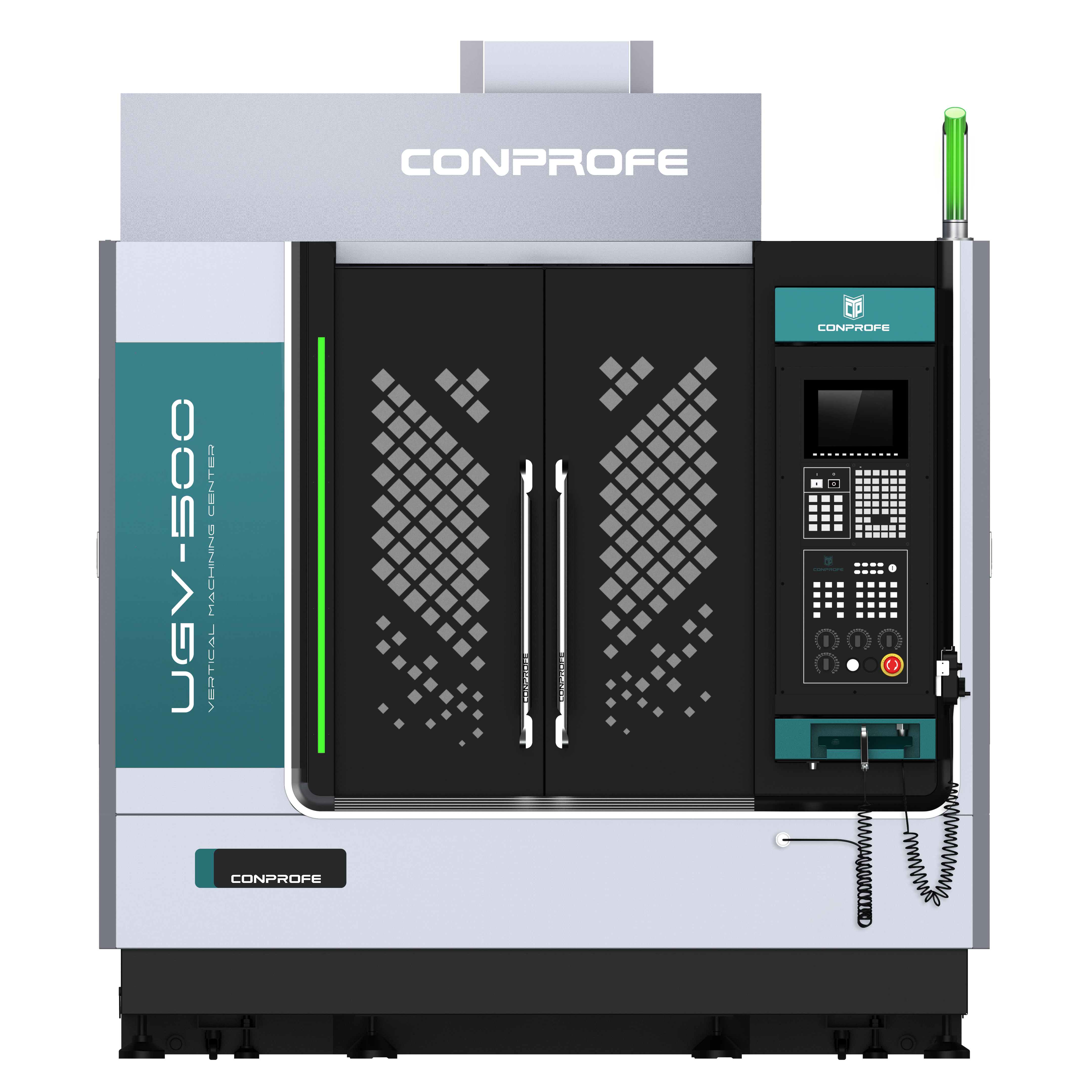

UGV-500
Suitable for machining precision parts made of hard-brittle materials (e.g. ceramic, sapphire, glass, silicon carbite etc.), carbon-fiber composites, superalloy (e.g. titanium alloy) and other hard-to-cut materials
| BT40/HSK-A63 | 3 | 15K/20K | 0.006 mm | 0.003 mm |
| TAPER | AXIS | RPM | POSITIONING | REPEATABILITY |
Features
Spec Sheet
Video
Features
- Conprofe independently-developed intelligent Ultrasonic Machining System to readily solve issues in machining hard-to-cut materials
- Optional Supercritical CO₂ or MQL Cooling System to realize clean machining
- Two options for screw guides to meet requirements on machining hard-brittle materials and metal
- With high-precision linear encoders realizing fully-enclosed control
- Options of Fanuc, Mitsubishi, Siemens and HNC system available
- With an optional automatic fire suppression system
| Item | Unit | UGV-500 | |||
| Travel | |||||
| X/Y/Z-Axis Travel | mm | 550x400x450 | |||
| Spindle Nose to Table | mm | 140-590 | |||
| Spindle Center to Column Guide | mm | 409 | |||
| Worktable | |||||
| Dimensions | mm | 650×400 | |||
| Max. Load | kg | 300 | |||
| T-Slot (No. x Width x Distance) | pcs x mm x mm | 3x14x110 | |||
| Spindle | |||||
| Diameter | mm | Φ140 | Φ150 (Optional) | ||
| Max. Speed (Short-Duration) | rmp | 15,000 (Direct-Driven) | 20,000 (Electric Spindle) | ||
| Max. Speed (Long-Duration) | rmp | 12,000 (Direct-Driven) | 16,000 (Electric Spindle) | ||
| Motor Power (Rated / Short-Duration) | kW | 5.5 | 9/15 | ||
| Motor Torque (Rated / Short-Duration) | Nm | 17.5 | 14.8/6 | ||
| Spindle Taper | – | BT40 | HSK-A63 | ||
| Ultrasonic | – | Optional | Optional | ||
| Minimum Quantity Lubrication (MQL) | – | Optional | Optional | ||
| Ultrasonic + MQL | – | Optional | Optional | ||
| Feed Rate | |||||
| X/Y/Z-Axis Rapid Speed | m/min | 48/48/48 | |||
| X/Y/Z-Axis Max. Feed Speed | m/min | 10/10/10 | |||
| X/Y/Z-Axis Motor Power | kW | 1.5/1.5/3.0 | |||
| Accuracy | |||||
| X/Y/Z-Axis Positioning Accuracy | mm | 0.006 | |||
| X/Y/Z-Axis Repeatability | mm | 0.003 | |||
| Accuracy Grade | – | UP | |||
| Tool Magazine | |||||
| Tool Holding Capacity | No. of Tools | 24 (Standard) 30 (Optional) | |||
| Max. Tool Diameter (Full/Partial) | mm | Φ75/Φ150 | |||
| Max. Tool Length | mm | 300 | |||
| Max. Tool Weight | kg | 8 | |||
| Type | – | Disc Type | |||
| Miscellaneous | |||||
| Power Supply Voltage | – | Three-Phase AC, 380V/50Hz | |||
| Power Capacity | kVA | 18 | 20 | ||
| Air Pressure | MPa | 0.5-0.7 | |||
| Total Air Consumption | L/min | > 100 | |||
| Total Weight (incl. Accessories) | kg | 3800 | |||
| Machine Size (LxWxH) | mm | 2120 x 2380 x 2850 | |||
| Controller | |||||
| CNC Controller | – | Mitsubishi M80A | |||

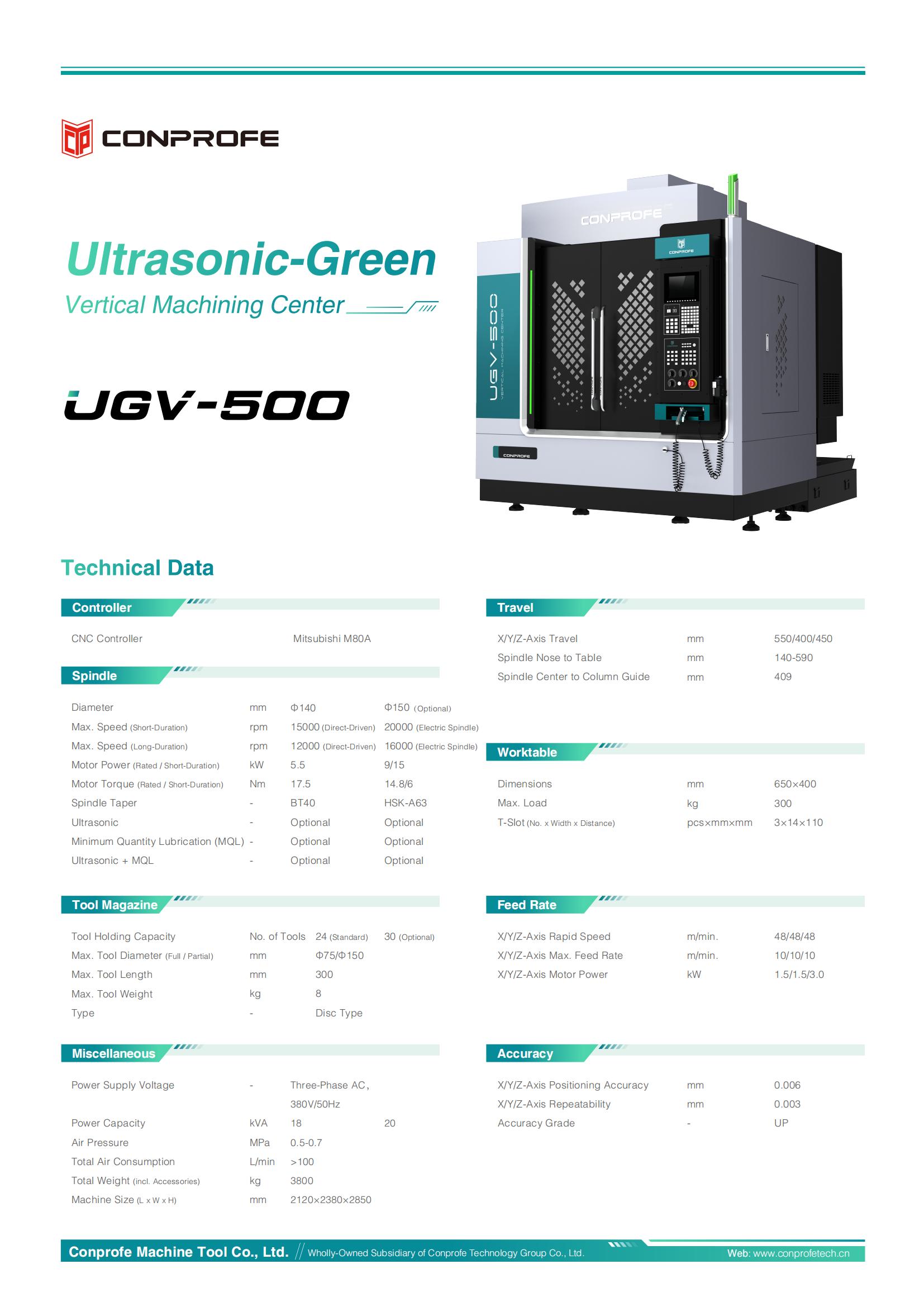

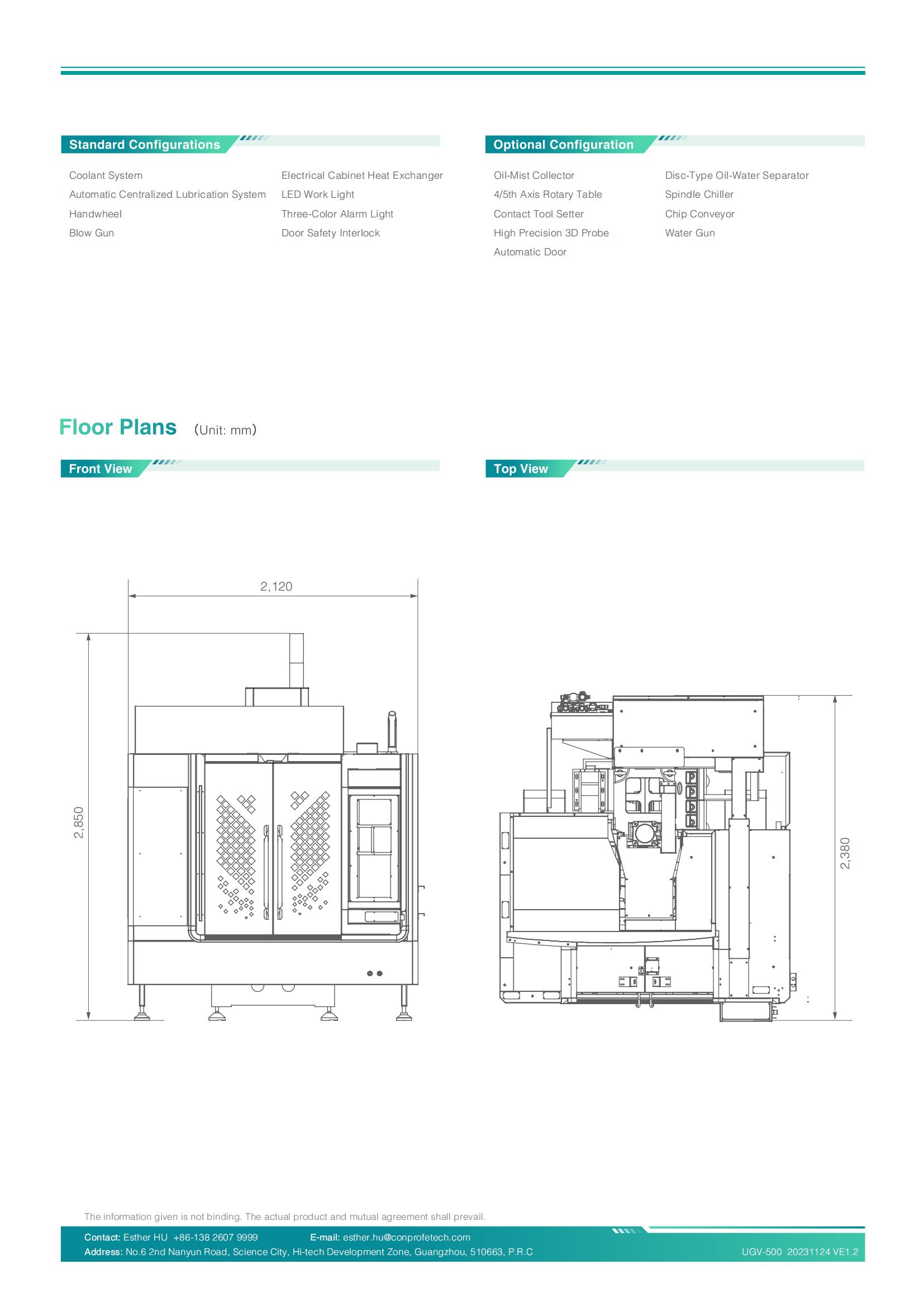

Spec Sheet
