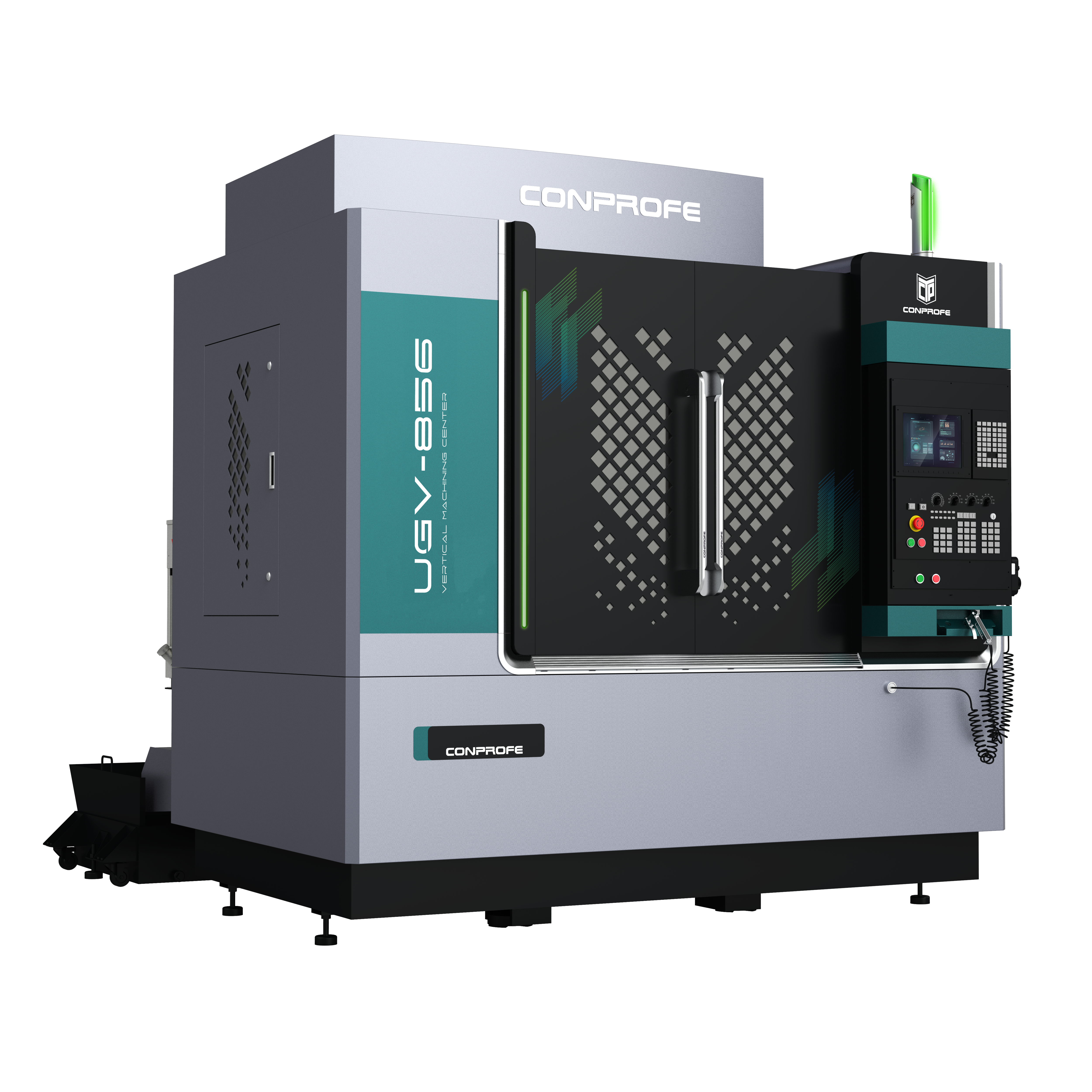

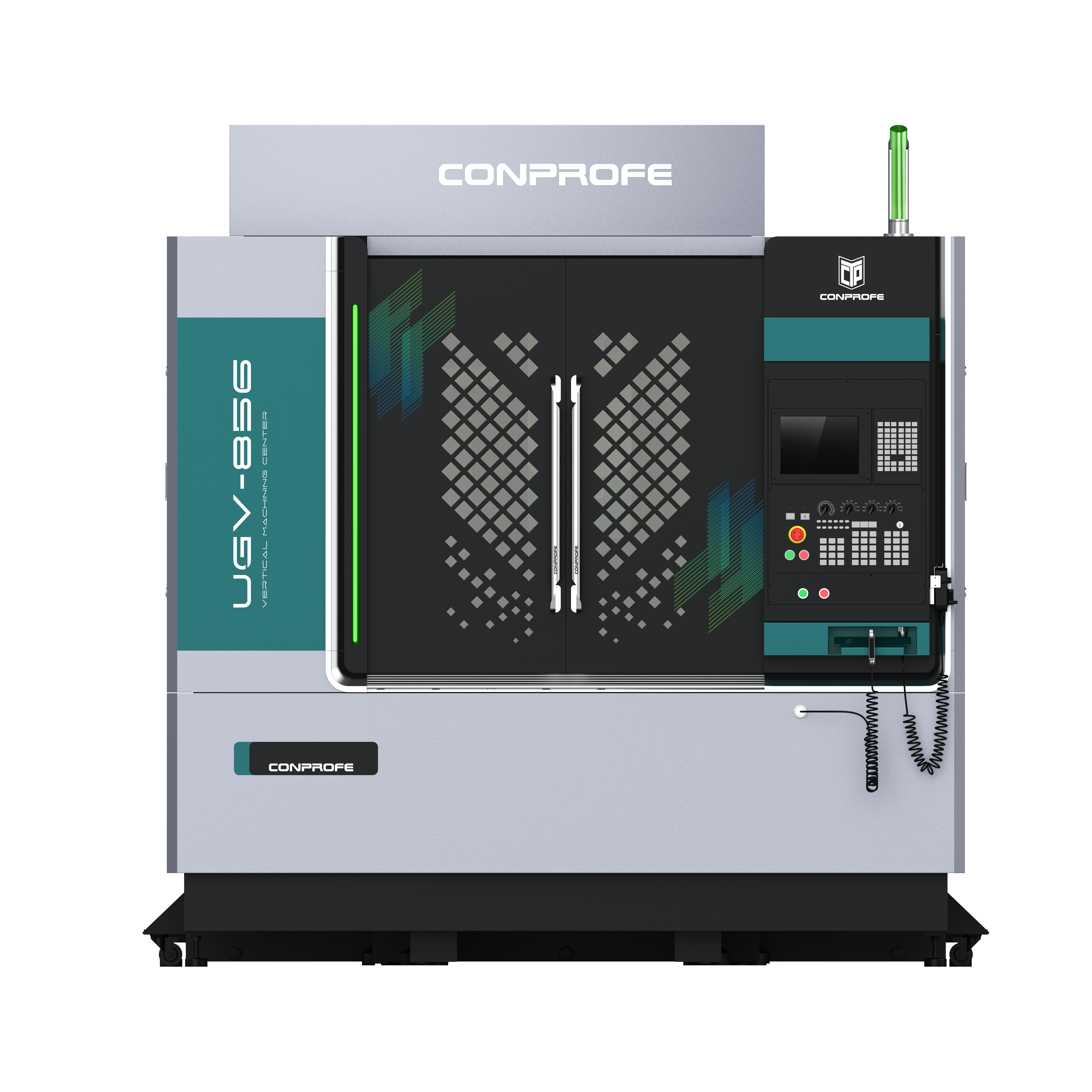

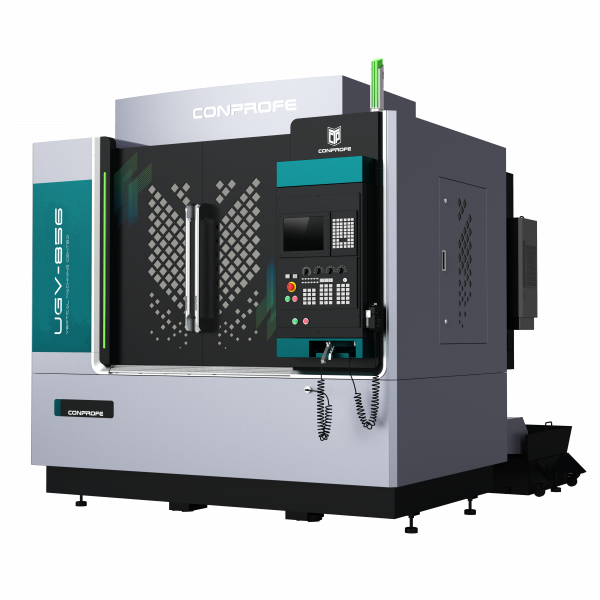

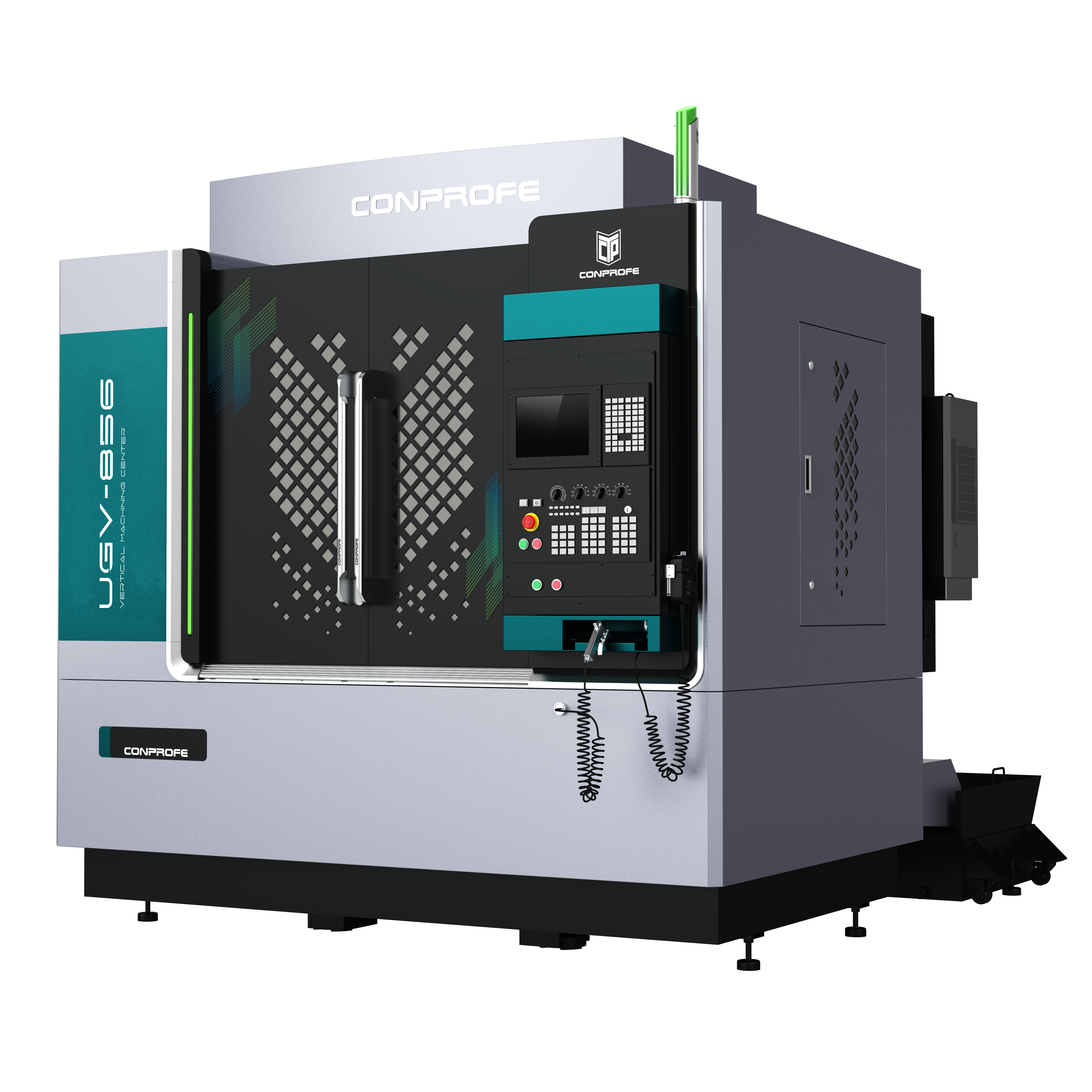

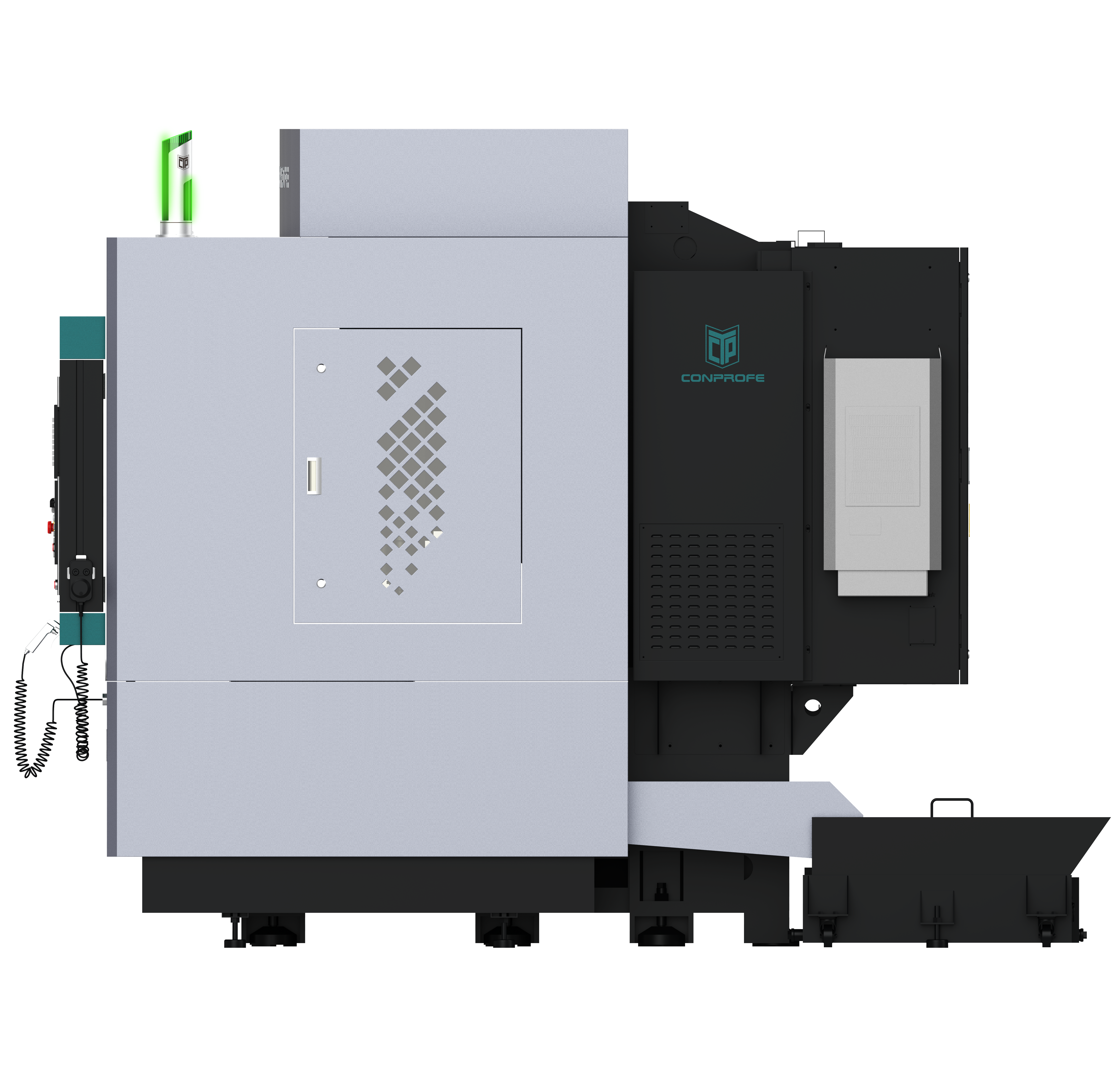

UGV-856
Suitable for machining precision parts made of hard-brittle materials (e.g. ceramic, sapphire, glass, silicon carbite etc.), carbon-fiber composites, superalloy (e.g. titanium alloy) and other hard-to-cut materials
| BT40 | 3 | 15K/20K | 0.006 mm | 0.004 mm |
| TAPER | AXIS | RPM | POSITIONING | REPEATABILITY |
Features

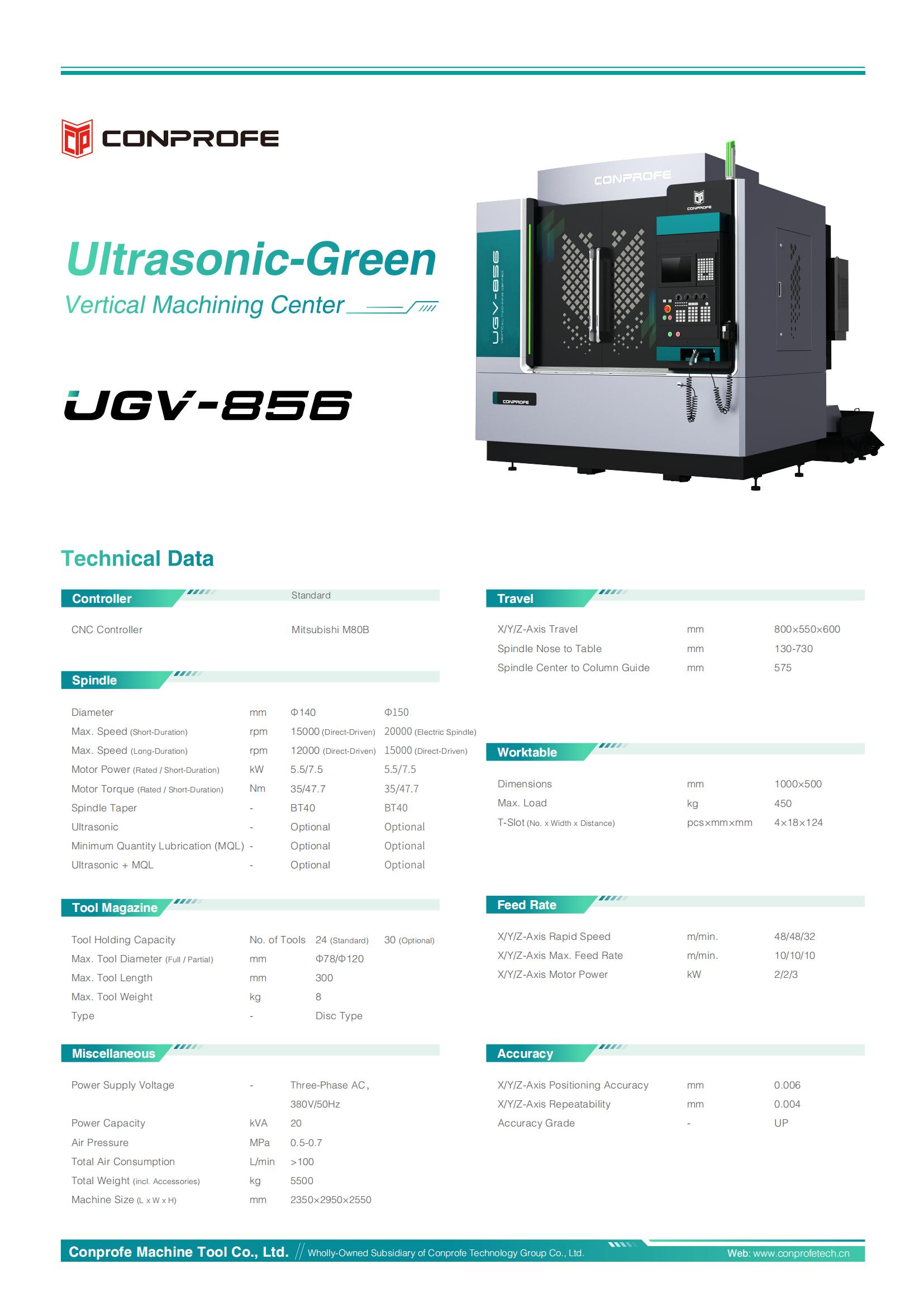

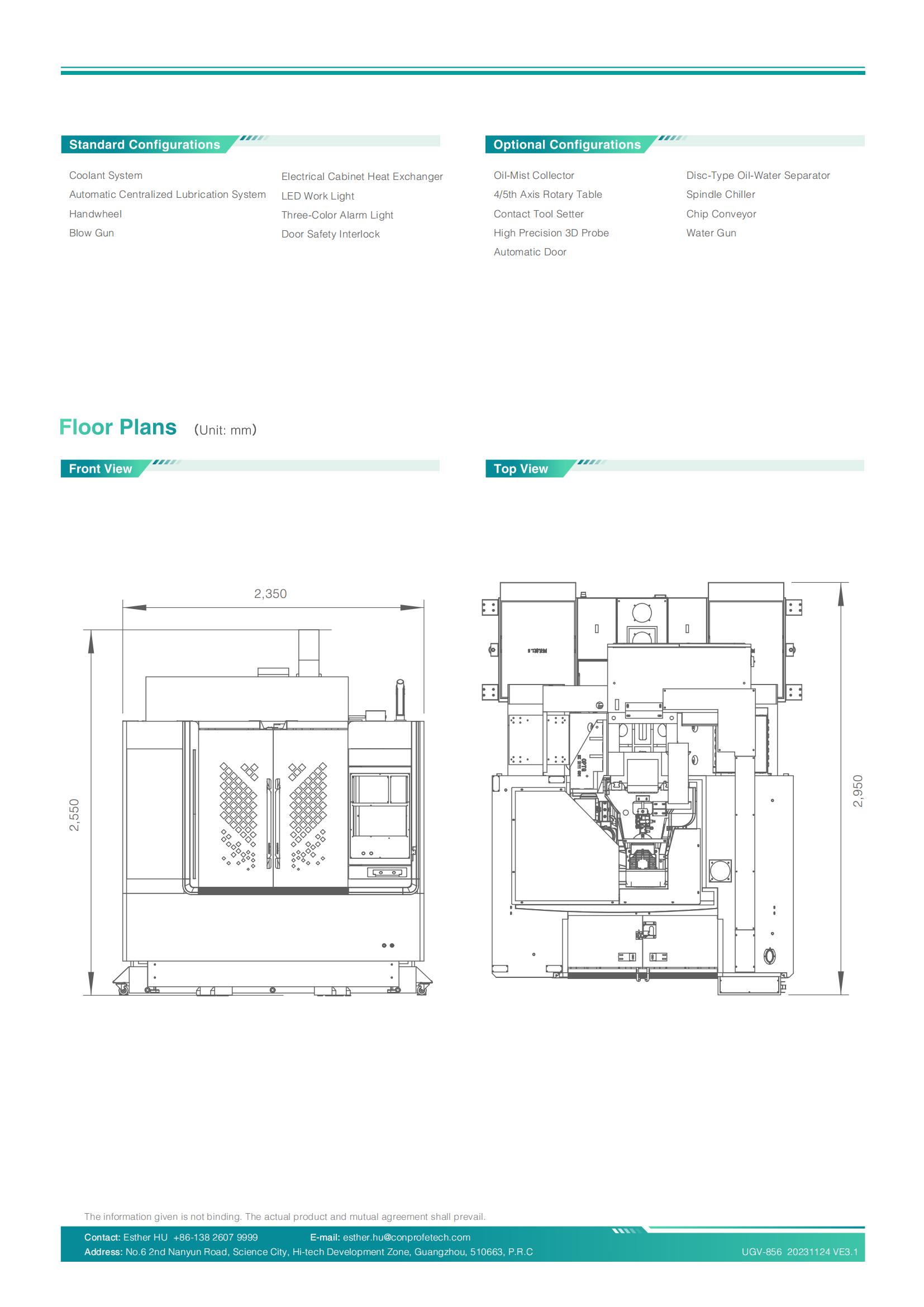

Spec Sheet
Video
Features
- Conprofe independently-developed intelligent Ultrasonic Machining System to readily solve issues in machining hard-to-cut materials
- Optional Supercritical CO₂ or MQL Cooling System to realize clean machining
- Two options for screw guides to meet requirements on machining hard-brittle materials and metal
- With high-precision linear encoders realizing fully-enclosed control
- Options of Fanuc, Mitsubishi, Siemens and HNC system available
- With an optional automatic fire suppression system
| Item | Unit | UGV-856 | |
| Travel | |||
| X/Y/Z-Axis Travel | mm | 800x550×600 | |
| Spindle Nose to Table | mm | 130-730 | |
| Spindle Center to Column Guide | mm | 575 | |
| Worktable | |||
| Dimensions | mm | 1000x500 | |
| Max. Load | kg | 450 | |
| T-Slot (No. x Width x Distance) | pcs x mm x mm | 4x18x124 | |
| Spindle | |||
| Diameter | mm | Φ140 | Φ150 |
| Max. Speed (Short-Duration) | rmp | 15,000 (Direct-Driven) | 20,000 (Electric Spindle) |
| Max. Speed (Long-Duration) | rmp | 12,000 (Direct-Driven) | 15000 (Electric Spindle) |
| Motor Power (Rated / Short-Duration) | kW | 5.5/7.5 | 5.5/7.5 |
| Motor Torque (Rated / Short-Duration) | Nm | 35/47.7 | 35/47.7 |
| Spindle Taper | – | BT40 | BT40 |
| Ultrasonic | – | Optional | Optional |
| Minimum Quantity Lubrication (MQL) | – | Optional | Optional |
| Ultrasonic + MQL | – | Optional | Optional |
| Feed Rate | |||
| X/Y/Z-Axis Rapid Speed | m/min | 48/48/32 | |
| X/Y/Z-Axis Max. Feed Speed | m/min | 10/10/10 | |
| X/Y/Z-Axis Motor Power | kW | 2/2/3 | |
| Accuracy | |||
| X/Y/Z-Axis Positioning Accuracy | mm | 0.006 | |
| X/Y/Z-Axis Repeatability | mm | 0.004 | |
| Accuracy Grade | – | UP | |
| Tool Magazine | |||
| Tool Holding Capacity | No. of Tools | 24 (Standard) 30 (Optional) | |
| Max. Tool Diameter (Full/Partial) | mm | Φ78/Φ120 | |
| Max. Tool Length | mm | 300 | |
| Max. Tool Weight | kg | 8 | |
| Type | – | Disc Type | |
| Miscellaneous | |||
| Power Supply Voltage | – | Three-Phase AC, 380V/50Hz | |
| Power Capacity | kVA | 20 | |
| Air Pressure | MPa | 0.5-0.7 | |
| Total Air Consumption | L/min | > 100 | |
| Total Weight (incl. Accessories) | kg | 5500 | |
| Machine Size (LxWxH) | mm | 2350 x 2950 x 2550 | |
| Controller | |||
| CNC Controller | – | Mitsubishi M80B (Standard) | |
