ULM-800A
Suitable for machining precision parts made of hard-brittle materials (e.g. ceramic, sapphire, glass, silicon carbite etc.), carbon-fiber composites, superalloy (e.g. titanium alloy) and other hard-to-cut materials
| HSK-E32 | 3 | 40K | 0.005 mm | 0.003 mm |
| TAPER | AXIS | RPM | POSITIONING | REPEATABILITY |
Features
Spec Sheet
Video
Features
- Conprofe independently-developed Ultrasonic Machining System to solve issues in machining hard-to-cut materials
- Optional Supercritical CO₂ or MQL Cooling System to realize clean machining
- Two options for screw guides to meet requirements on machining hard-brittle materials and metal
- Front-door loading & unloading and side-door operation available with facilitative operating position
- High-precision machining with up to 3μm of positioning accuracy and 2μm of repeatability
- Single/double/T40 chain-type tool magazine available
- With chip auger for smooth and thorough chip removal

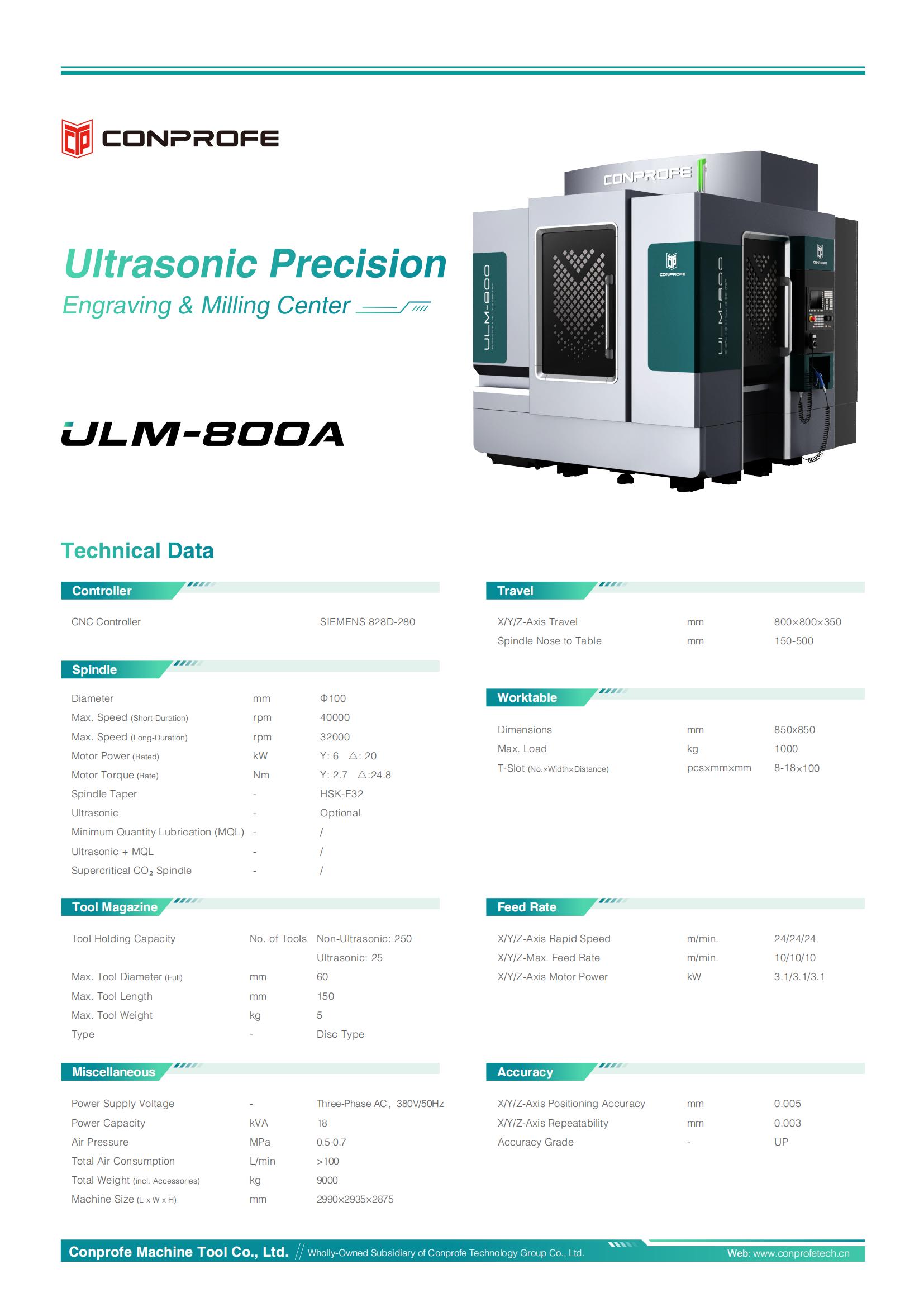

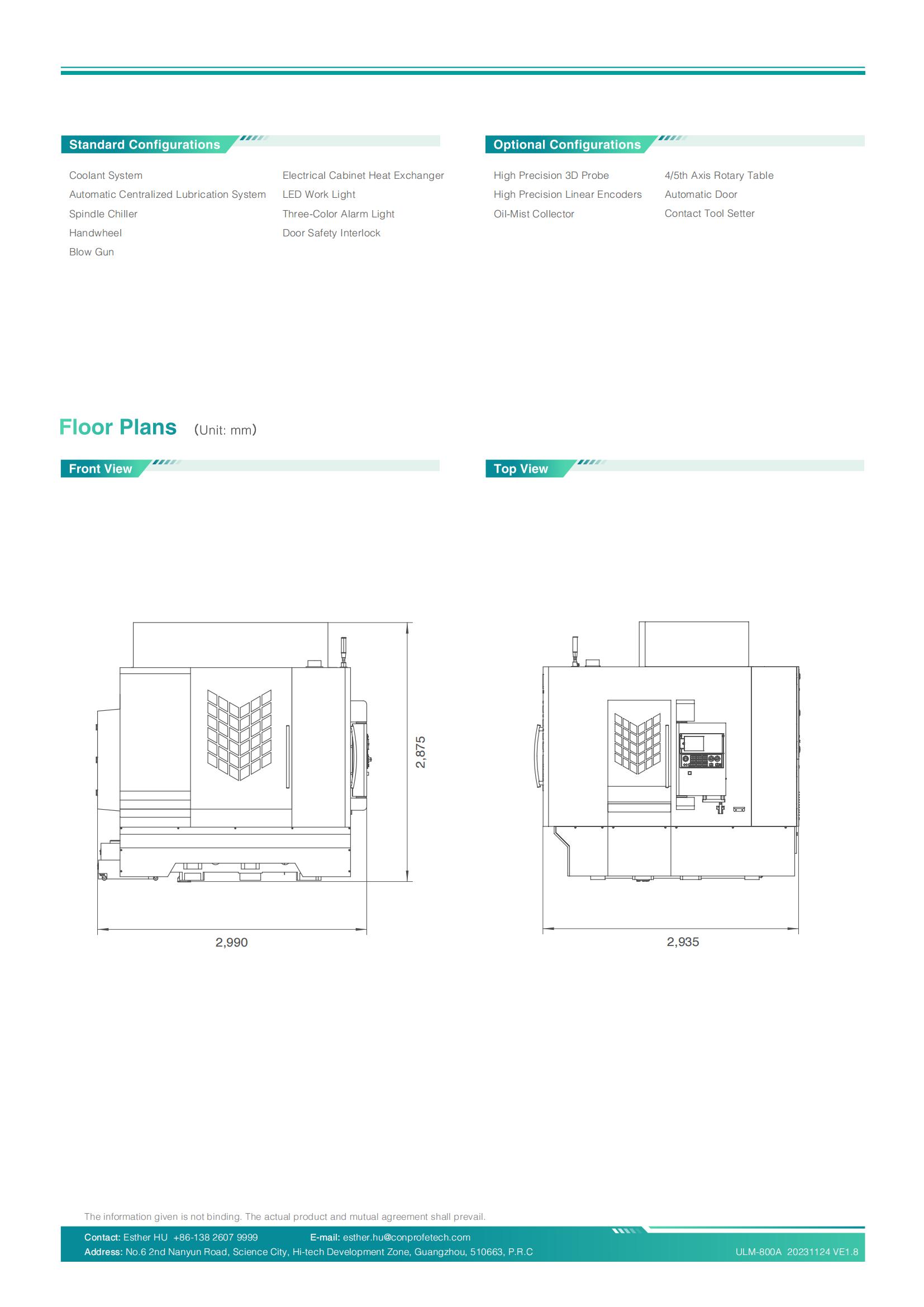

| Item | Unit | ULM-800A |
| Travel | ||
| X/Y/Z-Axis Travel | mm | 800x800x350 |
| Spindle Nose to Table | Mm | 150-500 |
| Worktable | ||
| Dimensions | mm | 850×850 |
| Max. Load | kg | 1000 |
| T-Slot (No. x Width x Distance) | pcs x mm x mm | 8x18x80 |
| Spindle | ||
| Diameter | mm | Φ100 |
| Max. Speed (Short-Duration) | rmp | 40,000 |
| Max. Speed (Long-Duration) | rmp | 32,000 |
| Motor Power (Rated) | kW | Y: 6 △: 20 |
| Motor Torque (Rated) | Nm | Y: 2.7 △24.8 |
| Spindle Taper | – | HSK-E32 |
| Ultrasonic | – | Optional |
| Minimum Quantity Lubrication (MQL) | – | / |
| Ultrasonic + MQL | – | / |
| Supercritical CO2 Spindle | – | / |
| Feed Rate | ||
| X/Y/Z-Axis Rapid Speed | m/min | 24/24/24 |
| X/Y/Z-Axis Max. Feed Speed | m/min | 10/10/10 |
| X/Y/Z-Axis Motor Power | kW | 3.1/3.1/3.1 |
| Accuracy | ||
| X/Y/Z-Axis Positioning Accuracy | mm | 0.005 |
| X/Y/Z-Axis Repeatability | mm | 0.003 |
| Accuracy Grade | – | UP |
| Tool Magazine | ||
| Tool Holding Capacity | No. of Tools | Non-Ultrasonic: 25 Ultrasonic: 25 |
| Max. Tool Diameter (Full) | mm | 60 |
| Max. Tool Length | mm | 150 |
| Max. Tool Weight | kg | 5 |
| Type | – | Disc Type |
| Miscellaneous | ||
| Power Supply Voltage | – | Three-Phase AC, 380V/50Hz |
| Power Capacity | kVA | 18 |
| Air Pressure | MPa | 0.5-0.7 |
| Total Air Consumption | L/min | > 100 |
| Total Weight (incl. Accessories) | kg | 9000 |
| Machine Size (LxWxH) | mm | 2990 x 2935 x 2875 |
| Controller | ||
| CNC Controller | – | SIEMENS 828D-280 |
