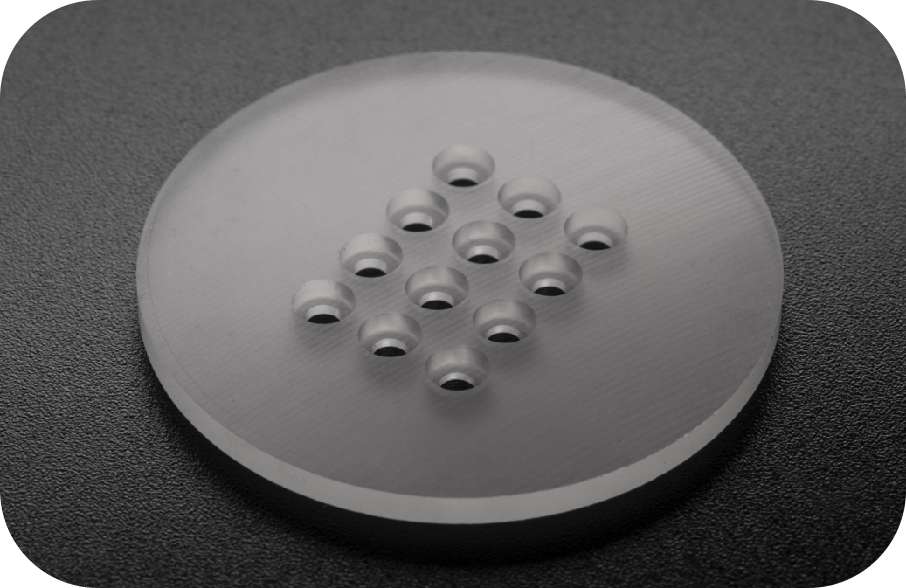

Sapphire Through-Hole Sidewall Machining



Workpiece

🔔 Sapphire

🔔 Hole: D2.5×0.8mm

🔔 Required Roughness Ra < 200nm



Challenges

❌ Poor hole wall surface quality

❌ Polishing time too long for mass production



Benefits

✅ Hole wall roughness improved from by 85%, 293nm to 46nm

✅ No need for polishing

Workpiece

Benefits

  • Nomex Honeycomb Contouring

图片宽度:400px, 图片高度:293px















Challenges

  • Uneven machined surface, severe burrs and excessive dust
  • Vulnerable to workpiece deformation, tearing and collapse due to compression


  • Burr reduction by 90%
  • Efficient 5-axis contouring of complicated shapes
  • Optional fully-closed protection and vacuum system against dust and explosion



Workpiece

  • Nomex Honeycomb Contouring













Challenges

  • Uneven machined surface, severe burrs and excessive dust
  • Vulnerable to workpiece deformation, tearing and collapse due to compression

Benefits

  • Burr reduction by 90%
  • Efficient 5-axis contouring of complicated shapes
  • Optional fully-closed protection and vacuum system against dust and explosion
